Molex stAK50h 1600290013 27-Position Hybrid Receptacle Housing | Suqin
Short Description:
-
Manufacturer & Series: Manufactured by Molex within the stAK50h product family, designated under the 160029 base series with part number 1600290013.
-

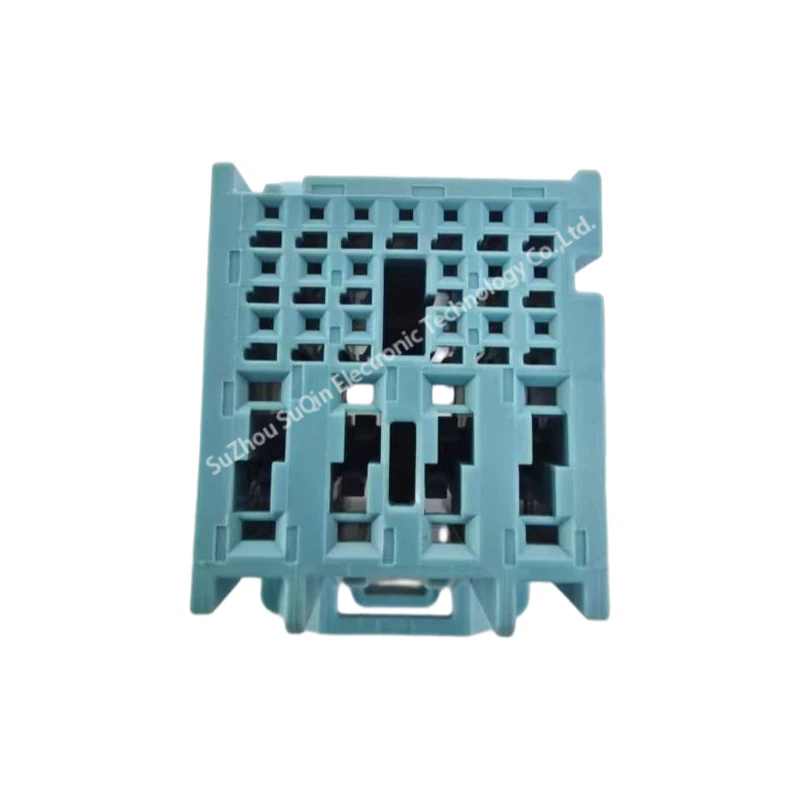

Configuration & Layout: Features a hybrid rectangular 27-position matrix layout, partitioned into 19 dedicated signal channels and 8 dedicated power channels.
-

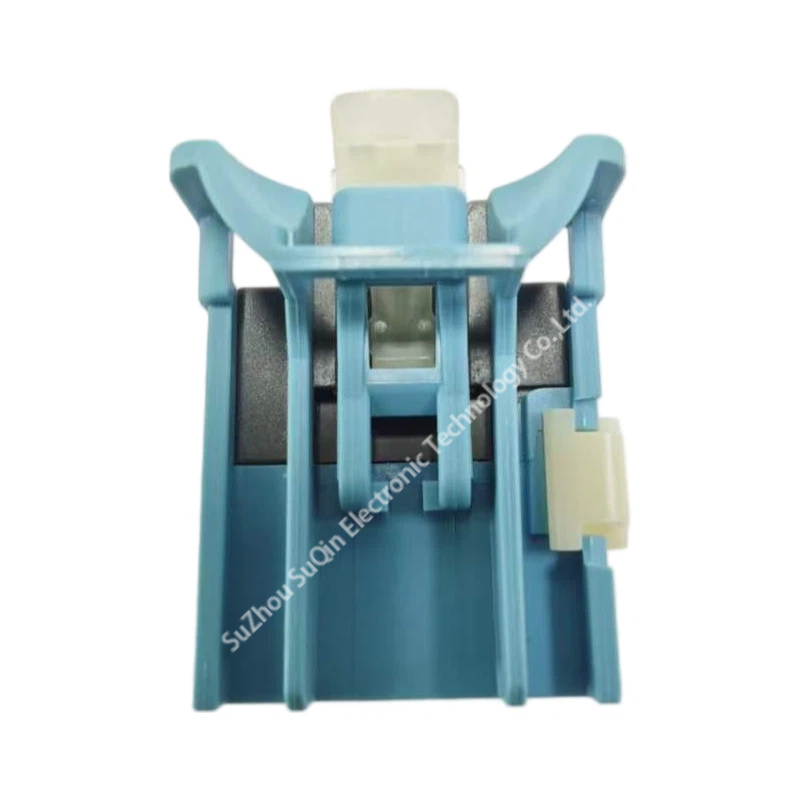

Mechanical Locking & Verification: Equipped with an integrated primary latch lock mechanism paired with a secondary Connector Position Assurance (CPA) component.
-
Material Composition: Injection-molded from glass-filled Syndiotactic Polystyrene (SPS) insulation polymer, finished in a blue housing color specification.
-
Mounting & Termination: Optimized for free-hanging (in-line) cable mounting configurations utilizing crimp contact termination methods for female sockets.
Product Detail
Product Tags
Factory-original Molex stAK50h Series 1600290013 27-position (19 signal + 8 power) rectangular receptacle housing. Features glass-filled SPS insulation, latch lock with CPA, and free-hanging crimp termination. Available via Suzhou Suqin.
Data Overview
| Parameter | Technical Specification |
| Manufacturer | Molex |
| Part Number | 1600290013 |
| Base Product Number | 160029 |
| Series | stAK50h 160029 |
| Connector Type | Receptacle |
| Contact Type | Socket |
| Number of Positions | 27 (19 Signal + 8 Power) |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Latch Lock |
| Features | Connector Position Assurance (CPA) |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Color | Blue |
| Packaging | Bag |
| Part Status | Active |
| Note | Contacts Sold Separately |
Product Details
| Mechanical Locking & Verification | Hybrid Signal & Power Layout | Material Integrity & Design |

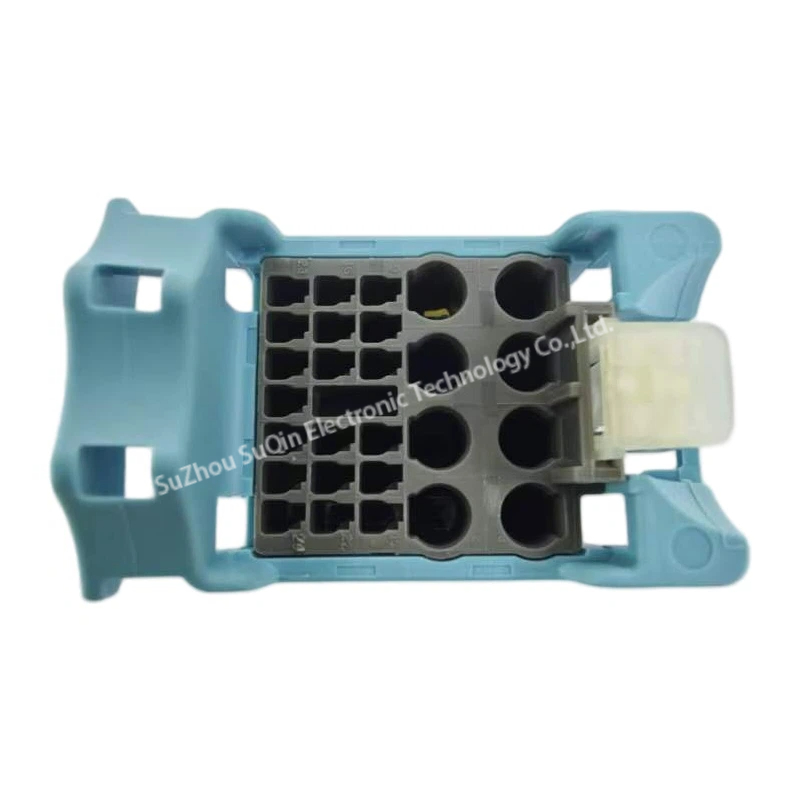

| Latch Lock with Integrated CPA Features a primary mechanical latch lock structure coupled with a secondary Connector Position Assurance (CPA) clip to verify complete insertion. | Hybrid 27-Circuit Configuration Consolidates 19 signal positions alongside 8 high-current power contact channels into a single rectangular profile housing. | Glass-Filled SPS Insulation Molded from glass-reinforced Syndiotactic Polystyrene (SPS) polymer providing precise dimensional stability. |
| Prevents accidental unlatching or partial mating conditions under industrial or automotive vehicle vibration profiles. | Eliminates the need for separate signal and power connectors, reducing spatial requirements in free-hanging wire harnesses. | Delivers high chemical resistance and structural rigidity across multi-line terminal insertion configurations. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: Does the 1600290013 housing include the female crimp terminals inside the packaging?
A: No. As detailed in the manufacturer technical specifications, the internal female crimp socket contacts are sold separately (“Contacts Sold Separately”). Matching stAK50h series crimp terminals must be selected and purchased independently based on your specific wire gauge (AWG) requirements.
Q2: What exact operational security does the Connector Position Assurance (CPA) component provide?
A: The CPA acts as a secondary mechanical lock. It is designed so that it cannot be pushed into its final locked state unless the main receptacle latch lock is fully engaged and seated with the mating interface, providing visual and physical proof of a secure connection.
Q3: What are the primary advantages of the glass-filled Syndiotactic Polystyrene (SPS) insulation material?
A: Glass-filled SPS offers superior dimensional stability, low moisture absorption, and high thermal resistance compared to standard unreinforced plastics. This ensures the 27 terminal cavities maintain strict alignment tolerances under structural stress or automotive fluid exposure.
