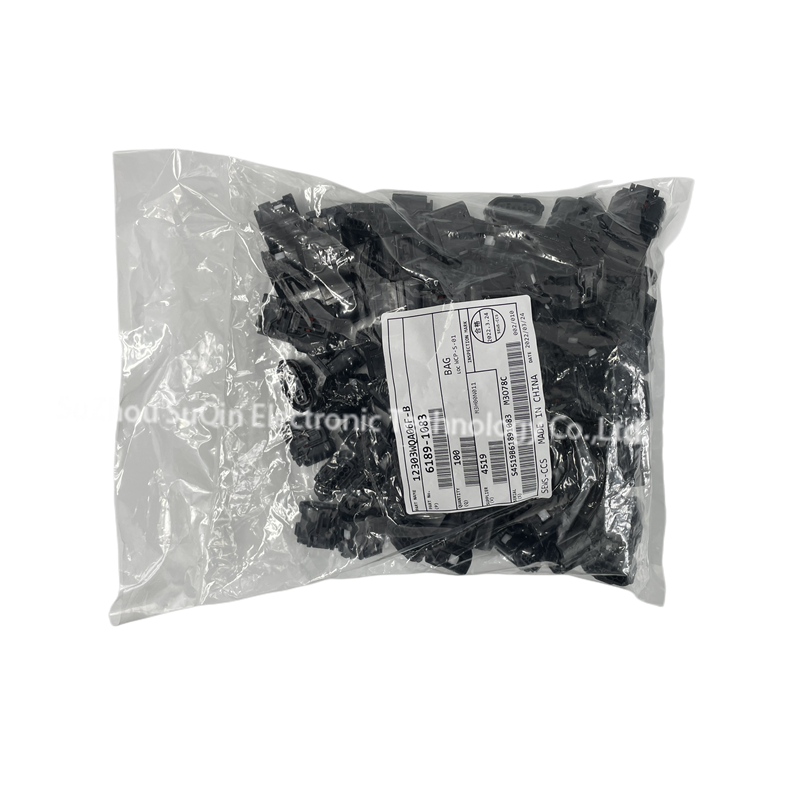

6189-1083 Sumitomo 6-Way Sealed Female Automotive Connector | Suqin

Short Description:

  • Part Number & Brand: Sumitomo | Part Number: 6189-1083

  • Type & Layout: 6-Way (6-Position) Sealed Female Connector Housing Plug

  • Electrical Performance: Initial contact resistance ≤8 mΩ (≤16 mΩ after durability testing), leakage current ≤50 μA, insulation resistance ≥100 MΩ

  • Cable & Wire Compatibility: Designed for 16 AWG to 22 AWG automotive wire sizes

  • Housing Material & Protection: Black PBT (Polybutylene Terephthalate) housing, environmentally sealed for automotive wire harness applications


Product Detail

Product Tags

Sumitomo 6189-1083 6-way sealed female automotive connector plug. Features PBT housing, black color, 16-22 AWG wire compatibility, 8mΩ max initial contact resistance, and 100MΩ min insulation resistance. Available via Suzhou Suqin.

Data Overview

Technical ParameterSpecification Value
Mfr. Part Number6189-1083
ManufacturerSumitomo
Product CategoryAutomotive Connectors
Connector TypeFemale Plug / Housing
Connector GenderFemale
Number of Ways (Positions)6 Way
Sealed / UnsealedSealed
Housing MaterialPolybutylene Terephthalate (PBT)
Housing ColorBlack
Compatible Wire Size16 – 22 AWG
Initial Contact Resistance8 mΩ Max.
Post-Durability Contact Resistance16 mΩ Max.
Leakage Current50 μA Max.
Insulation Resistance100 MΩ Min.
Target ApplicationsAutomotive Wiring Harnesses & On-Vehicle Electrical Systems

Product Details

6-Way Sealed Female Automotive InterfaceLow Resistance & Leakage Electrical SpecificationsDurable PBT Housing & Environmental Sealing
Automotive Wire Harness Interconnect

Designed as a 6-position female housing plug for automotive wiring harness systems, accommodating wire gauges from 16 AWG to 22 AWG.
Signal Continuity & Dielectric Integrity

Engineered to maintain an initial contact resistance under 8 mΩ (under 16 mΩ post-durability), a maximum leakage current of 50 μA, and insulation resistance of 100 MΩ minimum.
Weatherproof & Chemical Resistant Construction

Molded from black polybutylene terephthalate (PBT) material with internal sealing components to prevent moisture and dust ingress in vehicle environments.

Our advantage

● Brand supply diversification,
Convenient one-stop shopping

● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.

● Complete information, fast delivery
Reduce intermediate links

● Good after-sales service
Quick response, professional reply

● Original genuine guarantee
Support professional consultation

● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

Q1: What wire gauge range does the Sumitomo 6189-1083 connector accept?

The Sumitomo 6189-1083 connector is compatible with 16 AWG to 22 AWG automotive wiring.

Q2: Is the Sumitomo 6189-1083 automotive connector sealed?

Yes, the 6189-1083 is an environmentally sealed female connector designed to protect electrical contacts from moisture, dust, and fluid ingress in automotive applications.

Q3: What are the electrical contact resistance limits for the 6189-1083 connector?

The connector specifies a maximum initial contact resistance of 8 mΩ, which remains below 16 mΩ maximum following environmental and durability testing.
