TE 282090-1 6-Pin AMP Superseal 1.5mm Female Housing | Suqin

Short Description:

Genuine AMP Superseal 1.5mm Series: Rugged 6-position waterproof automotive housing engineered for female receptacle contacts with original factory part number 282090-1.

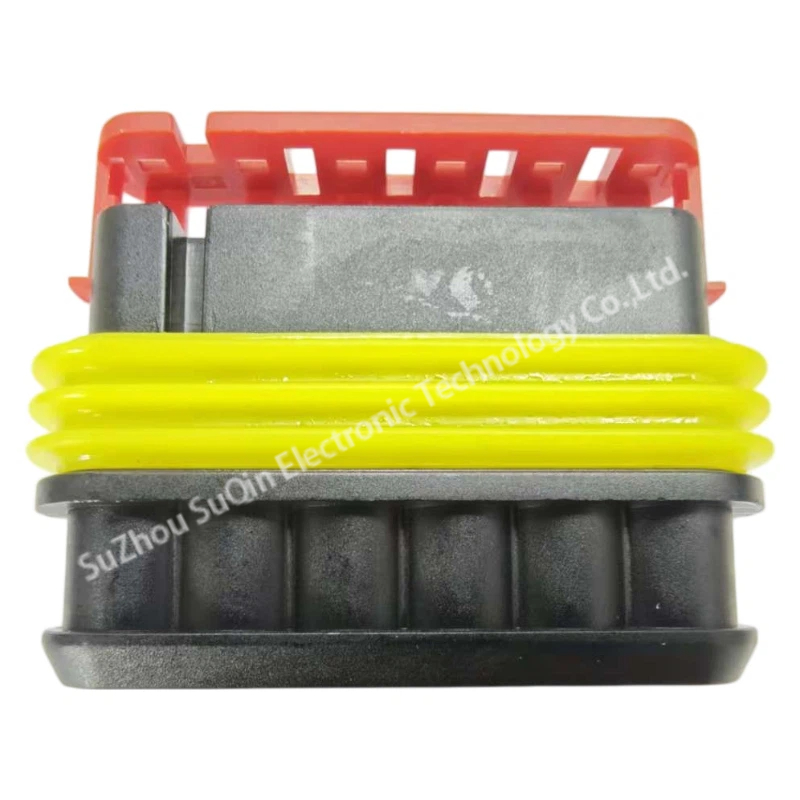

IP67 Environmental Protection: Pre-equipped with a high-grade yellow silicone rubber perimeter seal ensuring dust-tight and watertight performance under harsh road conditions.
Heavy-Duty PA66 GF Matrix: Molded from robust glass-fiber reinforced polyamide 66 to deliver outstanding mechanical impact strength and thermal durability up to 125°C.
Power Circuit Optimization: Engineered with a wide 6mm centerline pitch supporting a high contact current capacity up to 14A for 12V, 24V, or 48V automotive electrical architectures.
B2B Procurement Support: Distributed by Suzhou Suqin for commercial wire-to-board, wire-to-device, and wire-to-wire harness systems, with rapid sampling available for design verification.

Product Detail

Product Tags

Source original TE Connectivity 282090-1 6-pin AMP Superseal 1.5mm waterproof female housings from Suzhou Suqin. Features PA66 GF body, IP67 sealing, and 14A current rating.

Data Overview

Parameter	Technical Specification
Brand & Series	TE Connectivity / AMP Superseal 1.5mm
Part Number	282090-1
Number of Positions	6 Pins
Connector Type	Housing for Female Terminals
Centerline Pitch	6 mm
Primary Housing Color	Black
Housing Material	PA66 GF
IP Rating	IP67
Nominal Voltage Architecture	12V / 24V / 48V DC
Max Current Rating	14A
Mating Tab Width	1.5 mm
Operating Temperature	-40 – 125°C
Mating Alignment Type	Polarizing Slot
Circuit Application	Power & Signal

Product Details

Design & Structure	Technical Performance	Application Value

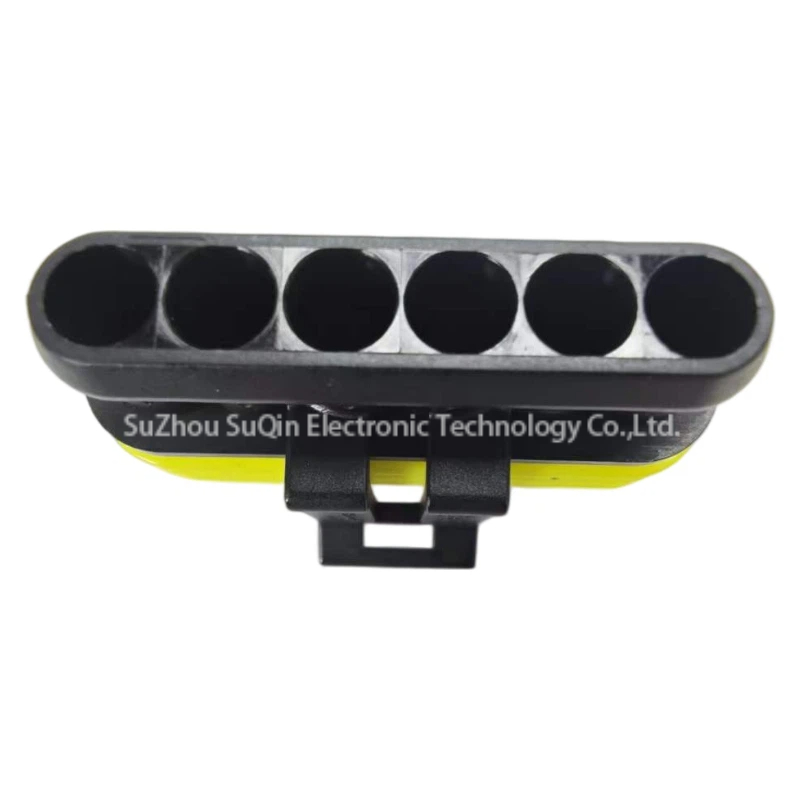

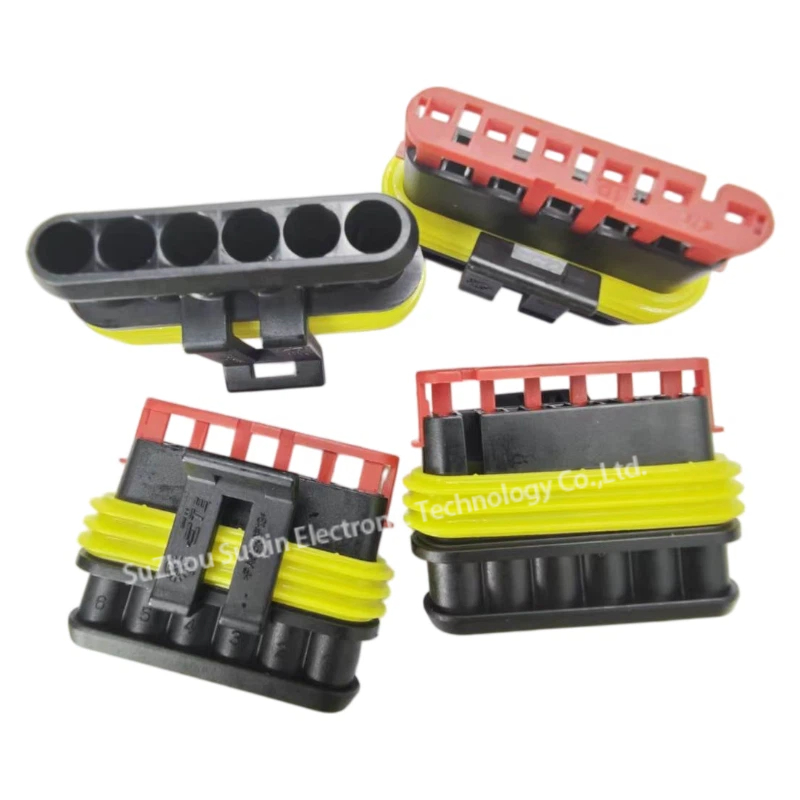

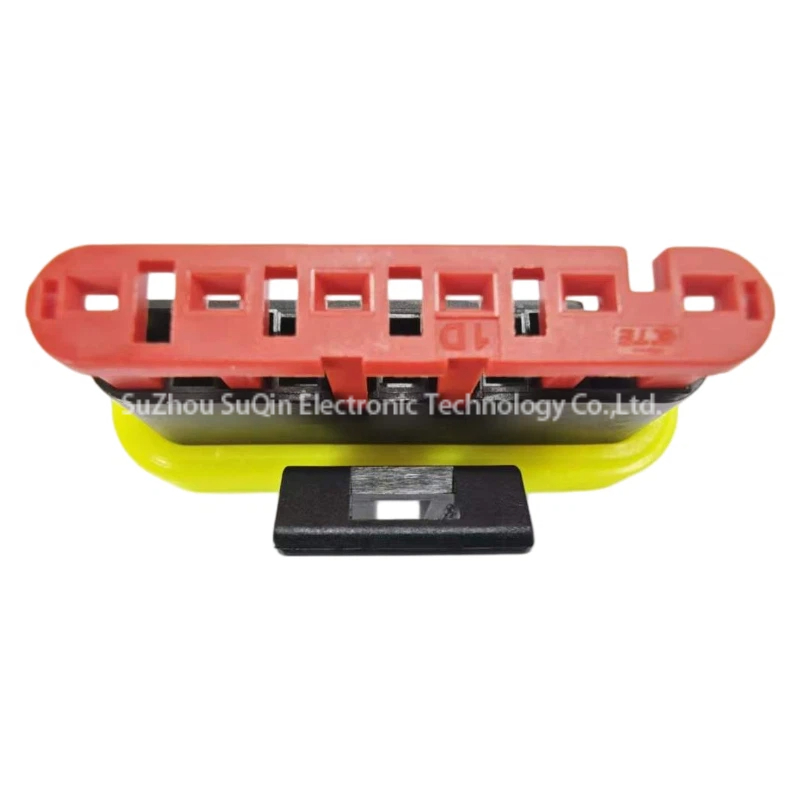

6-Position Single Row Shroud	Rectangular housing layout featuring clear molded pin markings (1-6) and an integrated red secondary locking component.	Prevents terminal back-out and allows quick visual verification during heavy-duty wire harness assembly.
IP67 Waterproofing & Seals	Integrated elastic rubber seal rings paired with a straight 180-degree cable exit angle geometry.	Completely blocks moisture, industrial fluids, and road grime from contaminating electrical contacts in under-hood zones.
Polarizing Slot Interface	Precision mechanical keying grooves built into the black housing to ensure exact mating alignment.	Eliminates operator cross-mating errors or contact pin damage on fast-paced commercial vehicle assembly lines.

Our advantage

● Brand supply diversification,
Convenient one-stop shopping

● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.

● Complete information, fast delivery
Reduce intermediate links

● Good after-sales service
Quick response, professional reply

● Original genuine guarantee
Support professional consultation

● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

Q1: What are the primary applications and current ratings for the TE 282090-1 housing?

A: This housing is engineered for power and signal circuit applications within wire-to-board, wire-to-device, and wire-to-wire automotive systems. It supports a robust maximum contact current rating of up to 14A when paired with compatible 1.5mm series female receptacle contacts.

Q2: Does this housing require additional components to achieve its stated IP67 rating?

A: The housing arrives pre-fitted with the external yellow perimeter silicone seal. However, to guarantee a complete IP67 watertight barrier against environmental moisture, individual single-wire seals (SWS) must be crimped onto each female terminal before wire insertion.

Q3: Is this connector housing compatible with commercial 48V electrical architectures?

A: Yes. The 282090-1 is fully compatible with standard 12V, 24V, and next-generation 48V DC nominal voltage vehicle architectures, operating reliably in heavy-duty environments from -40°C up to 125°C.
