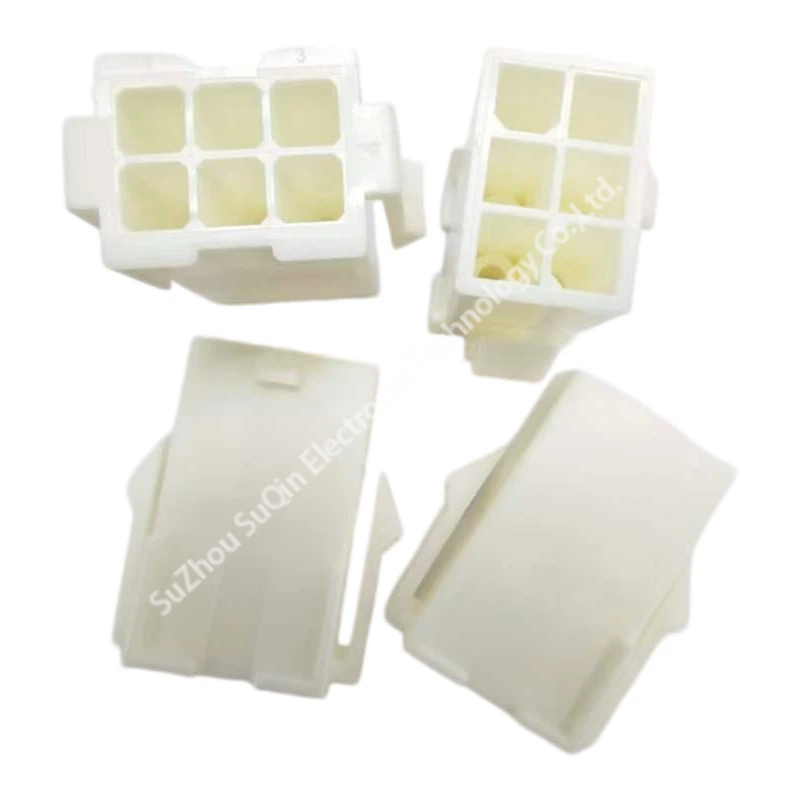

TE Connectivity 172160-1 Mini-Universal MATE-N-LOK 6-Pin Cap Housing | Suqin

Short Description:

Brand Manufacturer: TE Connectivity / AMP
MPN (Part Number): 172160-1
Product Series Family: Mini-Universal MATE-N-LOK
Connector Product Type: Housing Cap (Male Pin Carrier)
Total Circuit Positions: 6 Positions
Row Configuration Grid: 2 Rows (Dual Row Layout)
Centerline Pitch Spacing: 0.165″ (4.20mm)
Connector System Interface: Wire-to-Panel / Wire-to-Wire
Maximum Operating Voltage: 600 VAC / 600 VDC
Mounting Type Integration: Panel Mount (With Integrated Mounting Ears)
Housing Base Compound: Nylon 66 (Polyamide)

Product Detail

Product Tags

Shop TE Connectivity 172160-1 Mini-Universal MATE-N-LOK 6-position rectangular cap housing at Suqin. Features a 4.2mm pitch, 2-row grid, UL 94V-0 nylon shell, and integrated panel mounting ears for rugged power and signal wiring.

Data Overview

Core Specifications	Engineering Advantages	Operational Benefits
Integrated Panel Mounting Ears	Self-contained flexible side wings lock instantly into cutout windows without auxiliary mounting hardware or screws.	Slashes structural assembly times on the factory floor and ensures a clean, rattle-free interface on control panels.
UL 94V-0 Rated Nylon 66 Housing	High-grade flame-retardant polyamide provides superior structural strength and self-extinguishes within seconds in thermal emergencies.	Prevents circuit faults from escalating into electrical fires, satisfying strict safety audits for consumer and commercial hardware.
Dual-Row 4.2mm Pitch Compact Grid	Compact spacing packs 6 high-voltage power lines into a minimized cross-sectional profile ($11.8\text{ mm} \times 9.8\text{ mm}$).	Solves strict volumetric space limits in white goods, industrial machinery, and power distribution modules.
600 VAC/VDC Power & Signal Rating	Robust internal isolation barriers are designed to reliably handle high-voltage currents alongside delicate control signals simultaneously.	Eliminates the need to separate power and data streams into two connectors, lowering bill of materials (BOM) complexity and costs.

Product Details

Core Specifications	Engineering Advantages	Operational Benefits
Integrated Panel Mounting Ears	Self-contained flexible side wings lock instantly into cutout windows without auxiliary mounting hardware or screws.	Slashes structural assembly times on the factory floor and ensures a clean, rattle-free interface on control panels.
UL 94V-0 Rated Nylon 66 Housing	High-grade flame-retardant polyamide provides superior structural strength and self-extinguishes within seconds in thermal emergencies.	Prevents circuit faults from escalating into electrical fires, satisfying strict safety audits for consumer and commercial hardware.
Dual-Row 4.2mm Pitch Compact Grid	Compact spacing packs 6 high-voltage power lines into a minimized cross-sectional profile ($11.8\text{ mm} \times 9.8\text{ mm}$).	Solves strict volumetric space limits in white goods, industrial machinery, and power distribution modules.
600 VAC/VDC Power & Signal Rating	Robust internal isolation barriers are designed to reliably handle high-voltage currents alongside delicate control signals simultaneously.	Eliminates the need to separate power and data streams into two connectors, lowering bill of materials (BOM) complexity and costs.

Our advantage

● Brand supply diversification,
Convenient one-stop shopping

● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.

● Complete information, fast delivery
Reduce intermediate links

● Good after-sales service
Quick response, professional reply

● Original genuine guarantee
Support professional consultation

● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

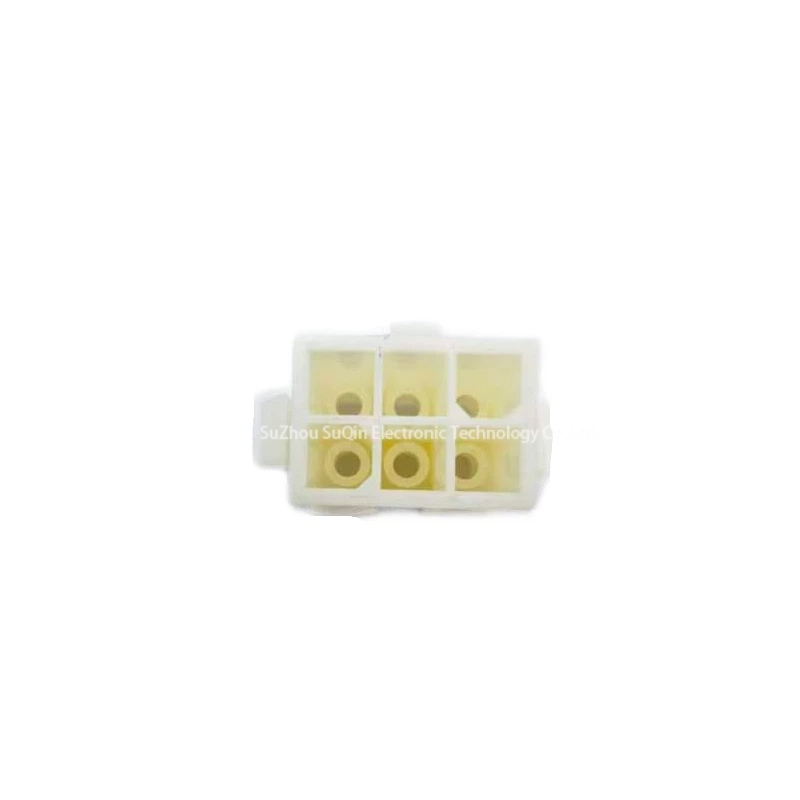

Q1: Does the 172160-1 package include the metal pin terminals?

No. The 172160-1 part number is exclusively for the nylon cap housing. Crimp pin contacts must be selected and purchased separately based on your specific wire gauge (such as 18-22 AWG or 22-26 AWG) to complete the assembly wire configuration.

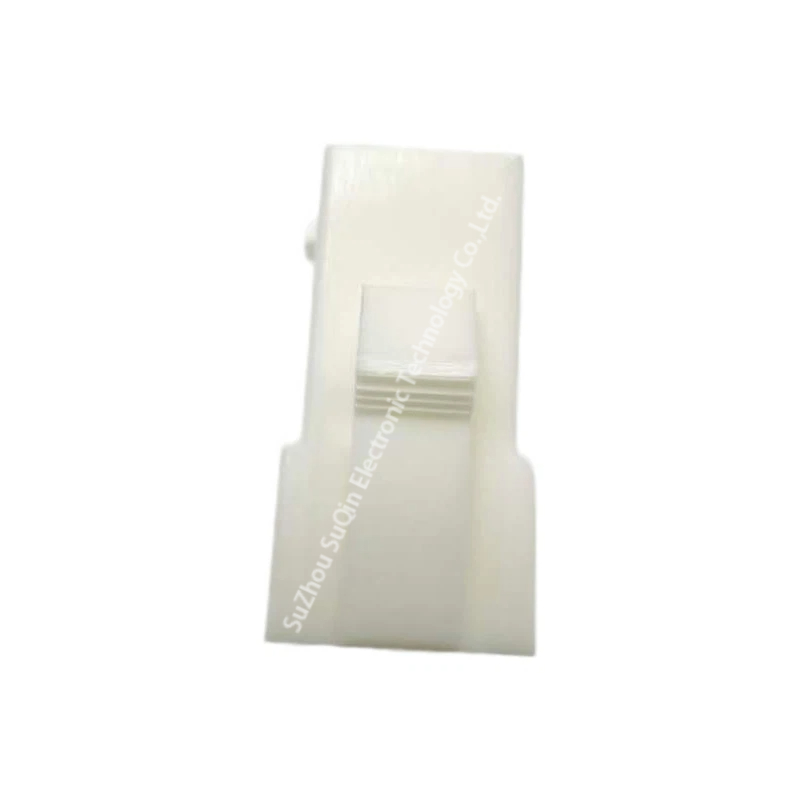

Q2: What is the benefit of the “Mounting Ears” feature on this cap?

The integrated flexible mounting ears allow the connector to function as a panel-mount interface. It easily snaps into a pre-cut rectangular panel cutout (recommended thickness: 0.8mm to 2.0mm) and locks securely into place without screws, stabilizing your wire-to-panel wire layouts against strain.

Q3: Can the 172160-1 housing cap be used for wire-to-wire inline applications?

Yes. While it features mounting ears optimized for panel cutouts, it can also be used as a free-hanging wire-to-wire inline connector. It mates perfectly with matching Mini-Universal MATE-N-LOK plug housings to create a reliable inline disconnect system.
