1-176282-1 AMP Universal Power 2-Position Cap Housing | Suqin
Short Description:
-
Manufacturer & Series: Part number 1-176282-1, engineered as a cap housing within the AMP Universal Power connector system.
-
Structural Configuration: 2-position, 1-row free-hanging (in-line) configuration featuring a standard 3.96 mm (0.156 in) centerline pitch.
-
Electrical Ratings: Designed for power and signal circuit applications with a stable operating voltage rating of 300 VAC.
-
Material & Thermal Integrity: Constructed from natural-colored PA 6/6 thermoplastic with a UL 94V-0 flammability rating, operating reliably from -30 °C to 105 °C.
-
Mechanical Design: Utilizes a crimp termination method to wire and cable, incorporating polarization for accurate mating alignment and a built-in latch mechanism for secure mating retention.
Product Detail
Product Tags
Industrial 1-176282-1 AMP Universal Power 2-position, 1-row cap housing. Features a 3.96mm pitch, 300 VAC rating, and UL 94V-0 natural PA 6/6 construction for wire-to-wire connections. Available via Suzhou Suqin.
Data Overview
| Technical Parameter | Specification Value |
| Mfr. Part Number | 1-176282-1 |
| Connector Series | AMP Universal Power |
| Product Type | Cap Housing |
| Connector System | Wire-to-Wire |
| Number of Positions | 2 |
| Number of Rows | 1 (Inline) |
| Centerline (Pitch) | 3.96 mm [0.156 in] |
| Operating Voltage | 300 VAC |
| Housing Material | PA 6/6 |
| Primary Product Color | Natural |
| Flammability Rating | UL 94V-0 |
| Glow Wire Rating | Standard Part – Not Glow Wire |
| Operating Temperature Range | -30 °C to 105 °C [-22 °F to 221 °F] |
| Termination Method | Crimp (Wire & Cable) |
| Contact Type | Tab |
| Mating Alignment Type | Polarization |
| Mating Retention Type | Latch |
| Mounting Type | Free-Hanging (In-Line) |
| Sealable | No |

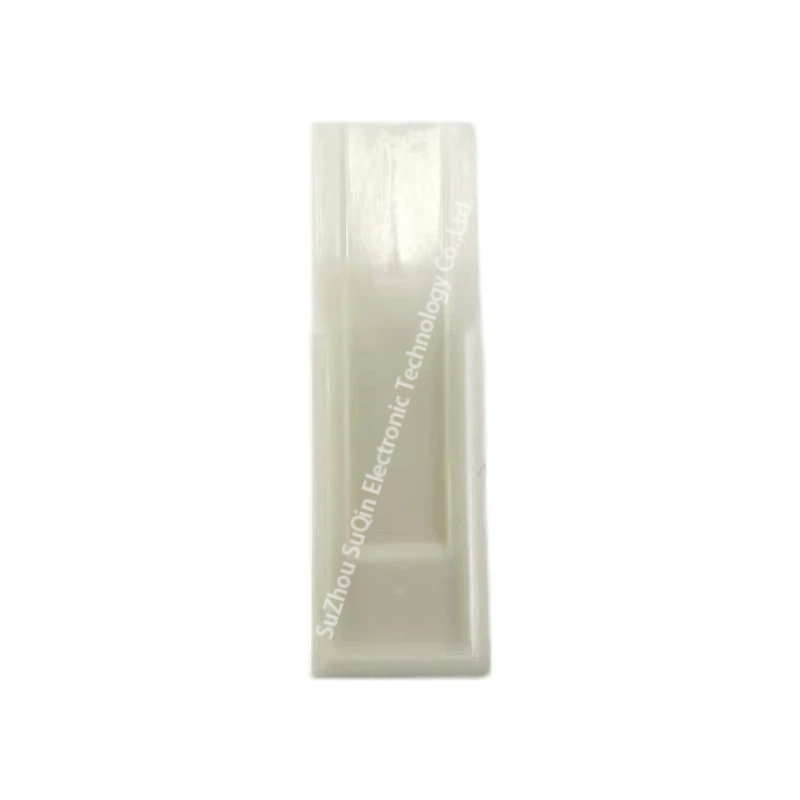

| Dimensions (L x H) | 29 mm [1.14 in] x 8.4 mm [0.33 in] |
Product Details

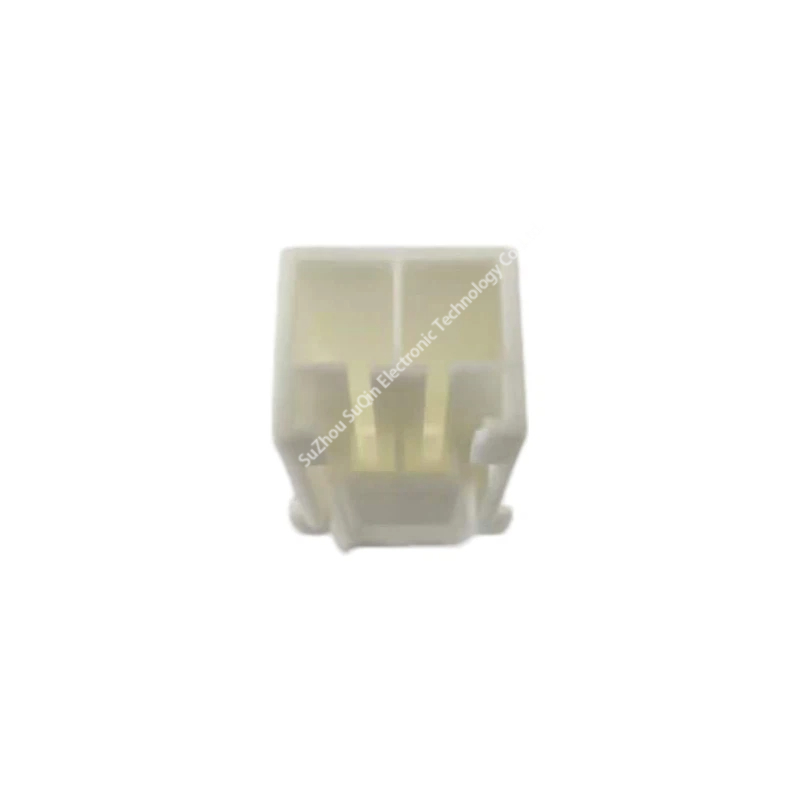

| 3.96mm Pitch In-Line Geometry | 300 VAC Electrical Capacity | UL 94V-0 PA 6/6 Construction |
| Optimized Spatial Layout The 2-position inline layout with a 3.96 mm centerline pitch provides a compact free-hanging structure, facilitating efficient wire-to-wire routing in constrained spaces. | Standardized Power Delivery Engineered for reliable power and signal distribution, supporting up to 300 VAC operating voltage to meet standard industrial circuit requirements. | Industrial Grade Material Molded from natural PA 6/6 material meeting UL 94V-0 flammability standards, ensuring structural stability and thermal endurance across a -30 °C to 105 °C range. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: What connector system does the 1-176282-1 housing belong to?
The 1-176282-1 is a key component of the AMP Universal Power connector series, designed specifically for unsealed wire-to-wire power and signal circuit applications.
Q2: What are the critical electrical and dimensional specifications for this cap housing?
This 2-position housing utilizes a standard 3.96 mm (0.156 in) centerline pitch in a 1-row inline layout. It is rated for an operating voltage of 300 VAC.
Q3: What material is used for the housing, and what is its thermal endurance?
The housing is constructed from natural-colored PA 6/6 thermoplastic. It meets the UL 94V-0 flammability standard and operates reliably within a temperature range of -30 °C to 105 °C.
