33472-0606 Molex MX150 6-Position Female Receptacle | Suqin
Short Description:
-
Manufacturer & Series: Part number 33472-0606, an automotive-grade mat-sealed female connector assembly belonging to the Molex MX150 series.
-
Structural Configuration: 6-position, 2-row (2×3) cable mount receptacle featuring a standard 3.5 mm (0.138 in) pitch and Keying Option A in a black housing.
-
Electrical Ratings: Supports a maximum current rating of 22A, engineered for reliable power, wire-to-board, and wire-to-wire circuit applications.
-

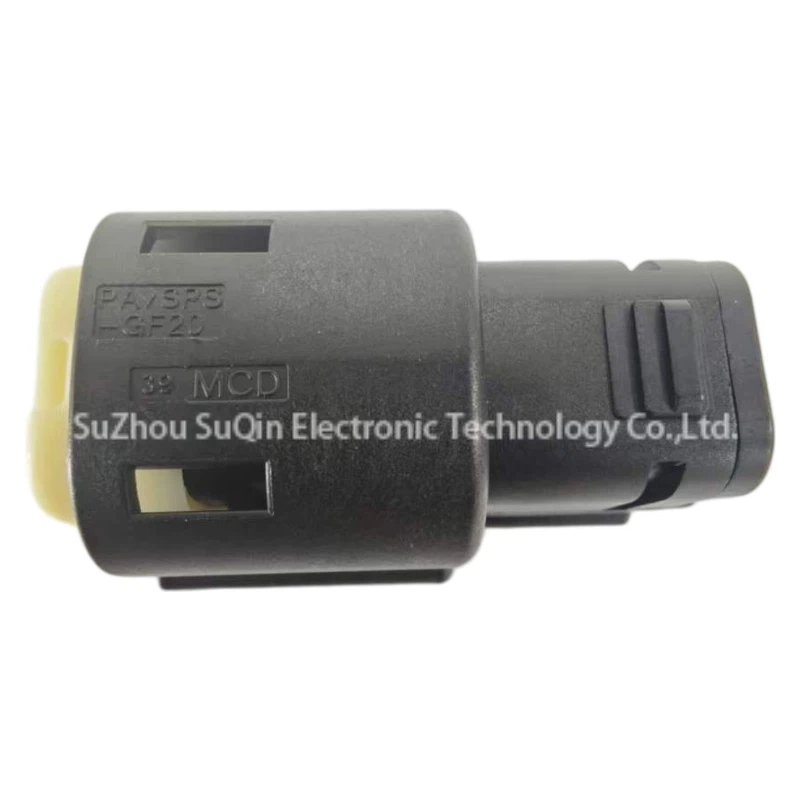

Material & Thermal Integrity: Constructed from a modified polystyrene alloy (PS) housing, operating reliably across extreme temperatures from -40 °C to +125 °C.
-
Mechanical Design: Utilizes crimp termination and includes a Connector Position Assurance (CPA) mechanism to guarantee secure mating and prevent accidental disconnection.
Product Detail
Product Tags
Industrial 33472-0606 Molex MX150 6-position mat-sealed female receptacle assembly. Features Keying Option A, 22A current rating, and -40 to +125 deg C operating range. Available via Suzhou Suqin.
Data Overview
| Technical Parameter | Specification Value |
| Mfr. Part Number | 33472-0606 |
| Manufacturer | Molex |
| Connector Series | MX150 (Series 33472) |
| Product Type | Automotive Connector |
| Gender | Receptacle (Female) |
| Number of Positions | 6 (2 Rows, 02X03P) |
| Pitch (Centerline) | 3.5 mm (0.138 in) |
| Current Rating | 22 A |
| Housing Material | Modified Polystyrene Alloy (PS) |
| Color | Black |
| Keying Option | A |
| Operating Temperature | -40 °C to +125 °C |
| Termination Style | Crimp |
| Mounting Style | Cable Mount / Free Hanging |
| Mounting Angle | Straight |
| Contact Type | Receptacle (Supplied Without Socket Contacts) |
| Special Features | With Connector Position Assurance (CPA), Mat-Sealed |
| Application | Power, Wire-to-Board, Wire-to-Wire |
| Packaging | Bulk |
| RoHS Compliant | Yes |
Product Details
| MX150 Mat-Sealed Architecture | 22A Power Transmission | CPA & Keying A Integration |

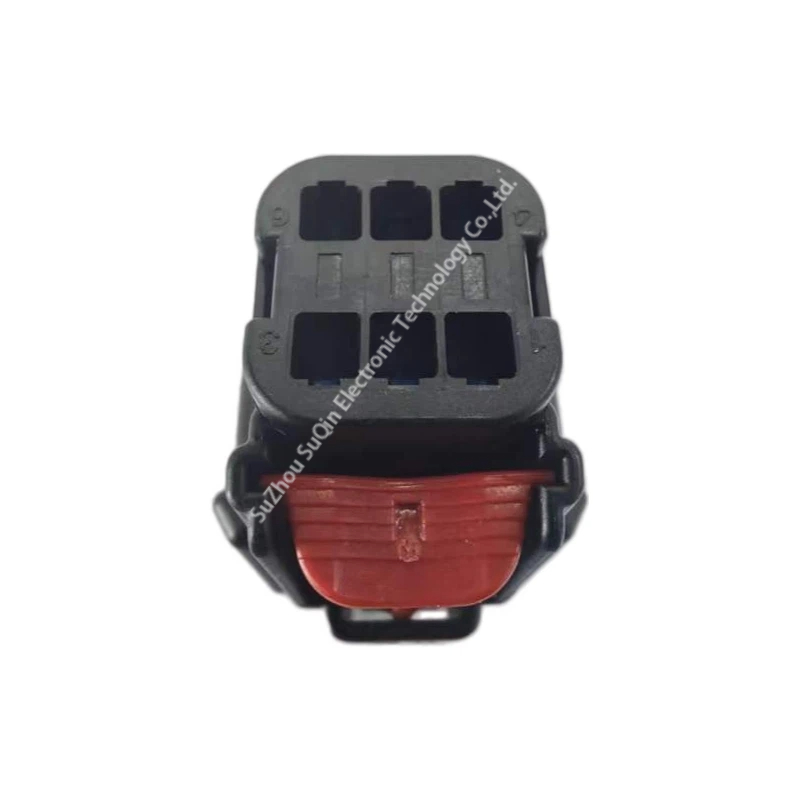

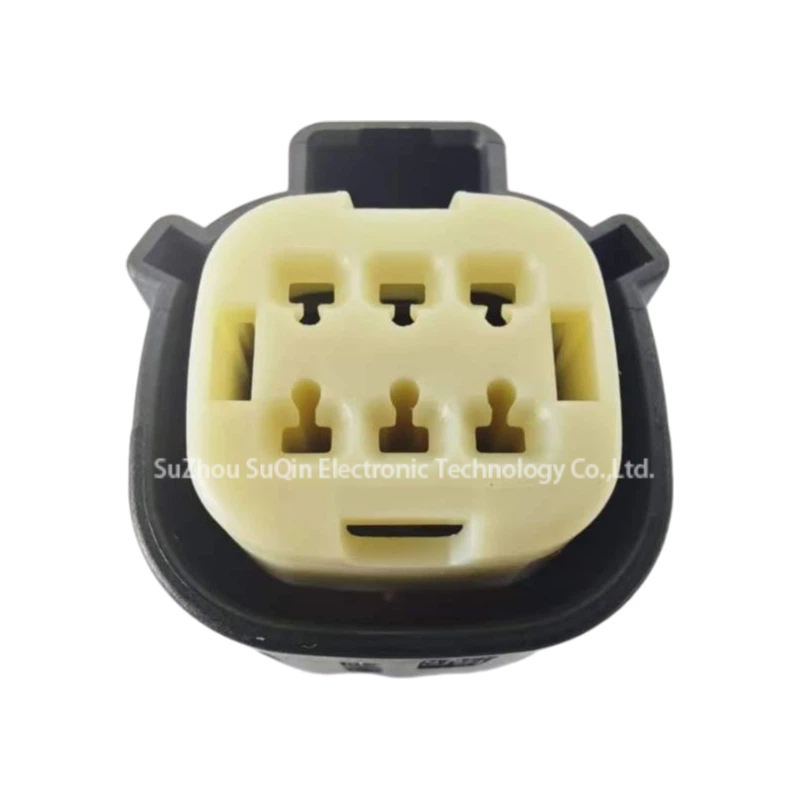

| Environmental Protection Features a robust mat-sealed design constructed from modified polystyrene alloy, ensuring structural integrity and environmental protection in automotive wire-to-wire or wire-to-board layouts. | Stable Electrical Output Engineered to support up to 22A continuous current, utilizing a standard 3.5mm pitch to deliver stable electrical performance across a -40 °C to +125 °C operating range. | Mechanical Security Incorporates Keying Option A to prevent mismating, alongside a red Connector Position Assurance (CPA) lock that secures the mating interface against high-vibration conditions. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: What series does the 33472-0606 belong to, and what is its primary application?
This part belongs to the Molex MX150 automotive connector series (specifically Series 33472). It is primarily designed for robust automotive power, wire-to-wire, and wire-to-board applications requiring environmental sealing.
Q2: What are the primary electrical and thermal ratings for this receptacle?
The connector supports a maximum current rating of 22A and is constructed from a modified polystyrene alloy that operates reliably within an extreme temperature range of -40 °C to +125 °C.
Q3: Does this assembly include terminals, and how is it secured during mating?
This housing assembly is supplied without socket contacts (terminals must be purchased separately). It ensures mechanical security through Keying Option A (preventing mismating) and features a built-in Connector Position Assurance (CPA) lock to maintain connection integrity under vibration.
