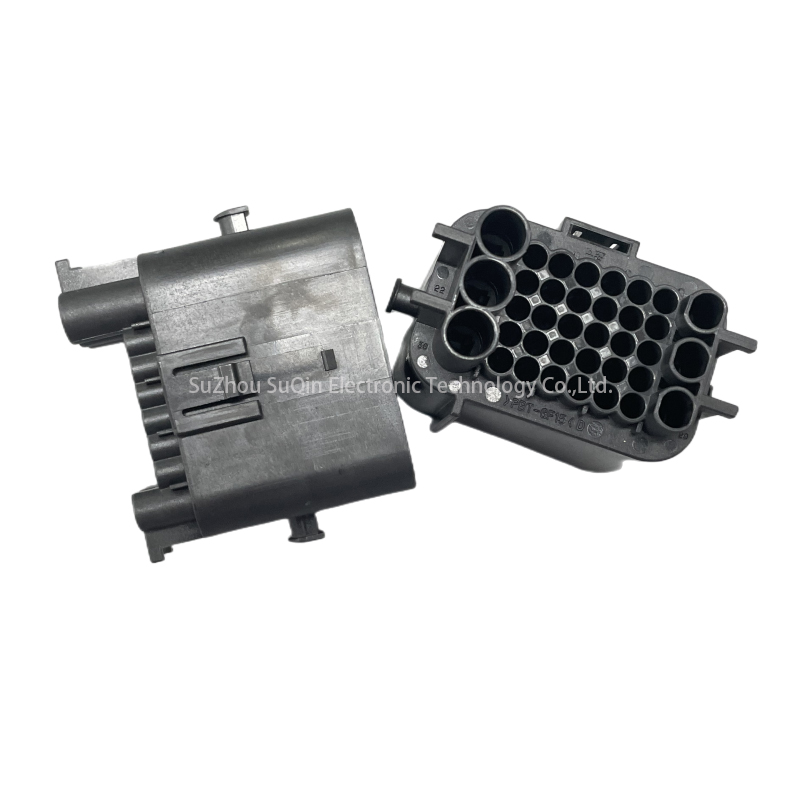

1743636-2 TE Connectivity 36 Position Hybrid Female Housing | Suqin

Short Description:

  • Part Number & Brand: TE Connectivity / AMP | Part Number: 1743636-2

  • Product Type & Architecture: 36-Position 5-Row Mixed & Hybrid Receptacle Housing for Female Terminals (Wire-to-Wire In-Line Connector System)

  • Contact Accommodation & Pitch: Accepts 1.6 mm (.063 in) and 2.8 mm (.11 in) receptacle contacts with 4 mm (.157 in) centerline pitch and row-to-row spacing

  • Material & Protection: Black glass-filled PBT housing with locking lance primary retention, sealable environmental protection, and UL 94HB flammability rating

  • Electrical & Thermal Limits: Rated for 12 VDC operating voltage architecture across operating temperatures from -40°C to 120°C (-40°F to 248°F)


Product Detail

Product Tags

TE Connectivity / AMP 1743636-2 36-position 5-row mixed/hybrid female connector housing for 12V automotive wire-to-wire power applications. Features glass-filled PBT housing, sealable design, 1.6mm/2.8mm contact sizes, 4mm pitch, and -40°C to 120°C range. Available via Suzhou Suqin.

Data Overview

Technical ParameterSpecification Value
Mfr. Part Number1743636-2
ManufacturerTE Connectivity / AMP
Connector & Housing TypeHousing for Female Terminals (Receptacle)
Connector SystemWire-to-Wire (Free-Hanging / In-Line)
Mixed & Hybrid ConnectorYes
Number of Positions36
Number of Rows5
Centerline (Pitch)4 mm [.157 in]
Row-to-Row Spacing4 mm [.157 in]
Compatible Contact Sizes1.6 mm [.063 in] / 2.8 mm [.11 in] Mating Tab Width
Operating Voltage12 VDC
SealableYes
Primary Locking FeatureLocking Lance
Cable Exit Angle180°
Mating Alignment TypeGuide Post
Terminal Position Assurance (TPA)No
Strain ReliefWithout
Housing MaterialGlass-Filled PBT
Primary Product ColorBlack
Product Dimensions (L x W x H)52.5 mm x 45.9 mm x 36.0 mm [2.06 in x 1.807 in x 1.41 in]
Operating Temperature Range-40°C to 120°C [-40°F to 248°F]
Circuit ApplicationPower
UL Flammability RatingUL 94HB

Product Details

36-Position Hybrid Contact ArchitectureSealed Glass-Filled PBT ConstructionWire-to-Wire In-Line Alignment
Dual Contact Size Flexibility

Accommodates mixed 1.6mm and 2.8mm receptacle terminals across a 5-row, 36-position layout for versatile power circuit partitioning.
Environmental Seal Protection

Molded from glass-filled PBT in black, providing a sealable housing structure operating within -40°C to 120°C environments.
In-Line Guide Post Polarization

Features integrated guide posts for precise mating alignment and locking lance primary retention in free-hanging wire-to-wire harness layouts.

Our advantage

● Brand supply diversification,
Convenient one-stop shopping

● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.

● Complete information, fast delivery
Reduce intermediate links

● Good after-sales service
Quick response, professional reply

● Original genuine guarantee
Support professional consultation

● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

Q1: What terminal contact sizes are compatible with the TE 1743636-2 housing?

The 1743636-2 hybrid housing is designed to accept female receptacle contacts matching 1.6 mm (.063 in) and 2.8 mm (.11 in) mating tab widths.

Q2: Is the TE 1743636-2 housing sealable for automotive power applications?

Yes, the housing is sealable and engineered for 12 VDC automotive wire-to-wire power circuits operating in harsh environments.

Q3: What is the mounting configuration and operating temperature range for TE 1743636-2?

It is a free-hanging (in-line) mounting receptacle housing with an operating temperature range of -40°C to 120°C (-40°F to 248°F).
