Amphenol AHDP04-24-07PN-BRACL22 DuraMate Size 24 7-Pin Receptacle | Suqin
Short Description:
-
Brand Manufacturer: Amphenol Industrial / Amphenol Sine Systems
-
MPN (Part Number): AHDP04-24-07PN-BRACL22
-
Product Series Family: DuraMate™ AHDP Series
-
Shell Size Indicator: Shell Size 24
-
Total Circuit Positions: 7 Positions
-
Mixed Contact Sizes: Size 4 (3 Positions) & Size 16 (4 Positions)
-
Contact Type Configuration: Pin (Male Standard Carrier)
-
Amperage Power Profile: Up to 100A (Size 4) / 13A (Size 16)
-
Maximum Operating Voltage: 250 VDC / VAC
-
Ingress Environmental Protection: IP68 , IP69K
Product Detail
Product Tags
Shop genuine Rosenberger 59Z176-C01-Z FAKRA Code Z water blue straight plastic plug housings at Suzhou Suqin. Rated up to 105 degrees Celsius. Perfect for neutral coding in universal automotive RF telematics, GPS, and camera connections.
Data Overview
| Technical Parametric Attributes | Spec Detail Values |
| Manufacturer | Amphenol Sine Systems Corp |
| Product Part Number | AHDP04-24-07PN-BRACL22 |
| Product Series | DuraMate™ AHDP Series |
| Shell Size | Size 24 |
| Number of Positions | 7 Positions |
| Contact Sizes Included | Size 4 (3 positions) / Size 16 (4 positions) |
| Contact Type | Pin (Male) |
| Gender Configuration | Male (Standard Receptacle) |
| Rated Amperage | 100A (Size 4) / 13A (Size 16) |
| Operating Voltage | 250 V |
| Housing Material | Heavy-Duty Thermoplastic |
| Primary Color | Black |
| IP Water/Dust Rating | IP68 and IP69K (Mated) |

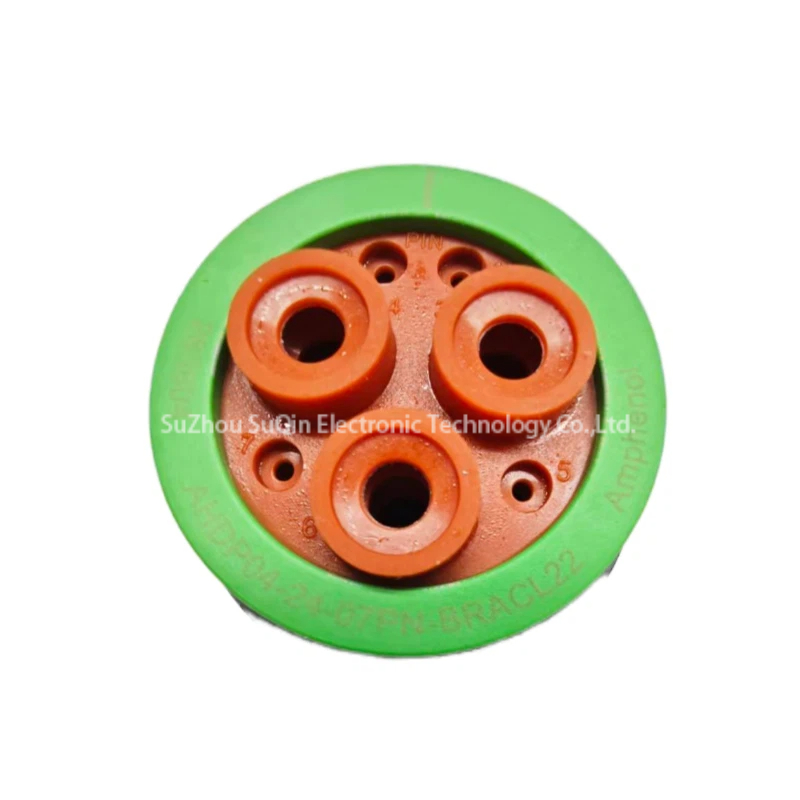

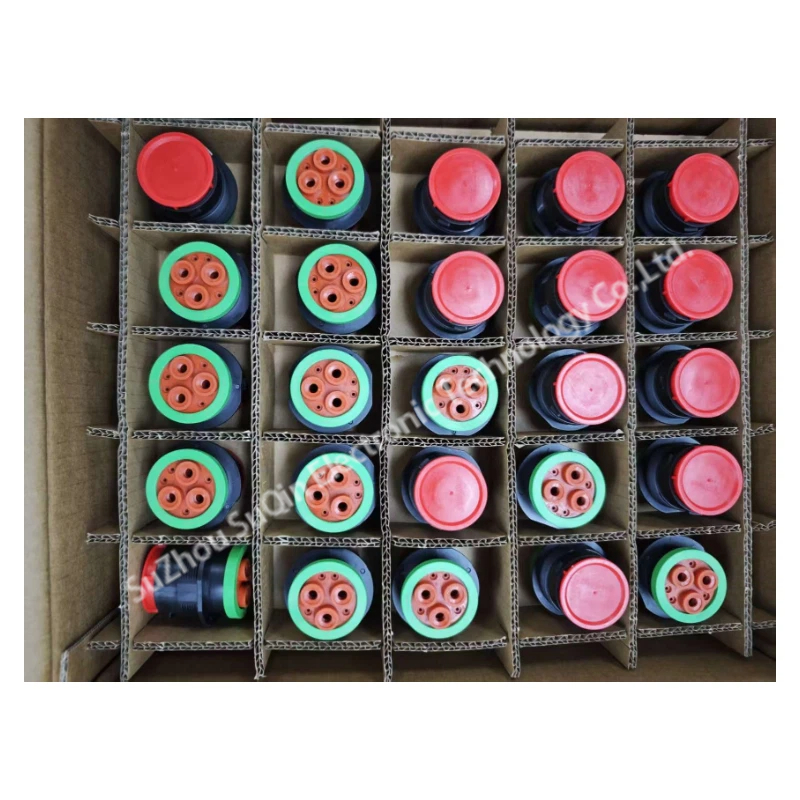

| Seal Material | Silicone Rubber |
| Seal Color | Green Ring / Orange Inset |
| Rear Seal Style | Normal Seal Type |
| Compatible Wire Ranges | Size 4: 4 AWG (25.0-21.0 mm²) Size 16: 14-20 AWG (2.0-0.5 mm²) |
| Dielectric Withstanding Voltage | < 2 mA current leakage at 1500 V AC |
| Insulation Resistance | 1000 Megaohm minimum at 25°C |
| Mating Cycle Durability | Over 100 Cycles |
| Matching Mating Part | AHDP06-24-07S*CL22 |
| RoHS Status | Fully Compliant |
| Procurement Note | Male Pin Crimp Contacts Sold Separately |
Product Details
| Core Specifications | Engineering Advantages | Operational Benefits |

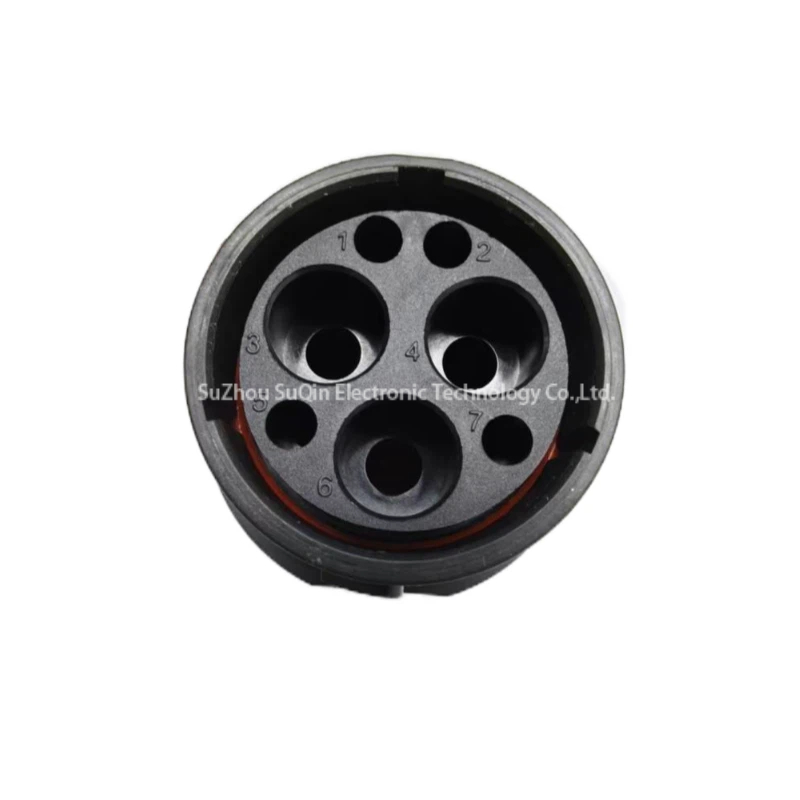

| Hybrid Size 4 & Size 16 Contact Cavities | Integrates three high-current 100A power ports and four 13A signal lines into a single, structured circular interface block. | Consolidates power and data pathways into one layout, slashing cable harness weight, installation space, and total inventory costs. |
| IP68 & IP69K Co-Mated Waterproofing | Premium green silicone rubber multi-seals lock out moisture, submersion down to 1 meter for 24 hours, and high-pressure steam washdowns. | Eliminates critical electrical shorting and field failures in heavy equipment exposed to severe weather, mud, and high-pressure washing. |

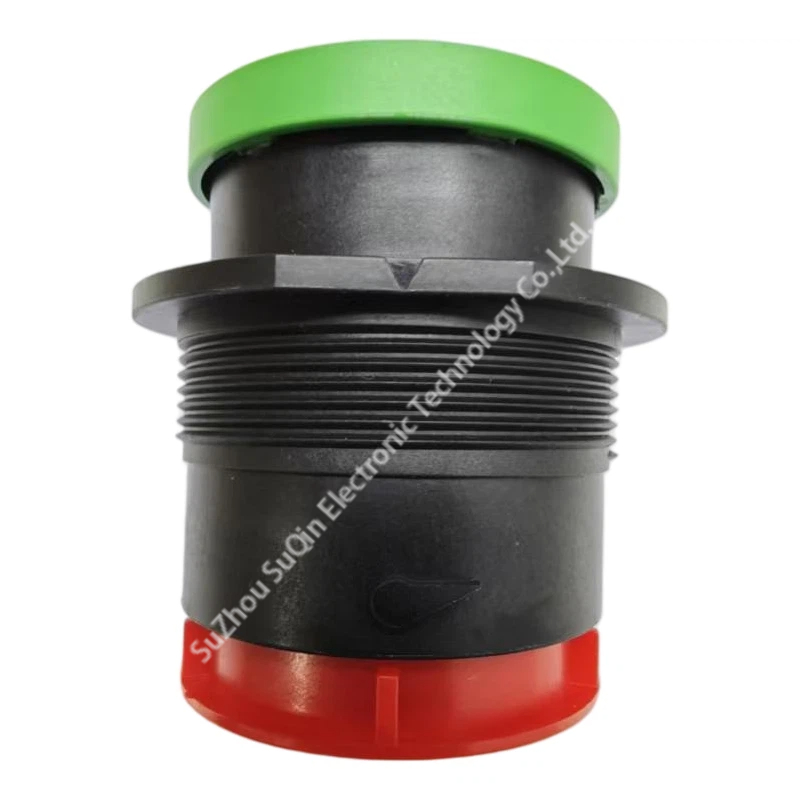

| Military-Grade Thermoplastic Shell | Built from high-strength engineering polymer that withstands impact, chemical splashes, and temperatures from -55°C to 125°C without deformation. | Guarantees long-term field survivability and structural integrity in heavy-duty agricultural, construction, and off-road machinery. |
| Bayonet Coupling with >100 Cycles | Heavy-duty shell design features tactile alignment indicators and a highly durable locking track rated for over 100 mating cycles. | Speeds up multi-pin connections during factory builds and ensures reliable, rattle-free mating under intense operational vibrations. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: Does the AHDP04-24-07PN-BRACL22 package include the crimp pins?
No. The AHDP04-24-07PN-BRACL22 part number represents the thermoplastic receptacle shell structure with its integrated green silicone rubber seals. Because engineers use different wire gauges, the required male pin contacts (Size 4 and Size 16) must be selected and purchased separately.
Q2: Why is the hybrid contact layout (Size 4 and Size 16) used on this model?
This 7-position mixed arrangement is engineered to solve space limitations on heavy-duty equipment panels. The three large Size 4 cavities support high-amperage power lines up to 100A (such as main power feeds), while the four smaller Size 16 cavities handle up to 13A for delicate electronic control or diagnostic signals simultaneously.
Q3: What level of water and pressure washdown protection does this receptacle offer?
When fully mated with its matching plug (such as the AHDP06-24-07S*CL22 series), this connector provides dual IP68 and IP69K environmental ratings. It is proven to withstand complete water submersion down to 1 meter for a continuous 24-hour period, as well as direct high-pressure, high-temperature stream washdowns common in industrial sanitization and severe weather exposure.
