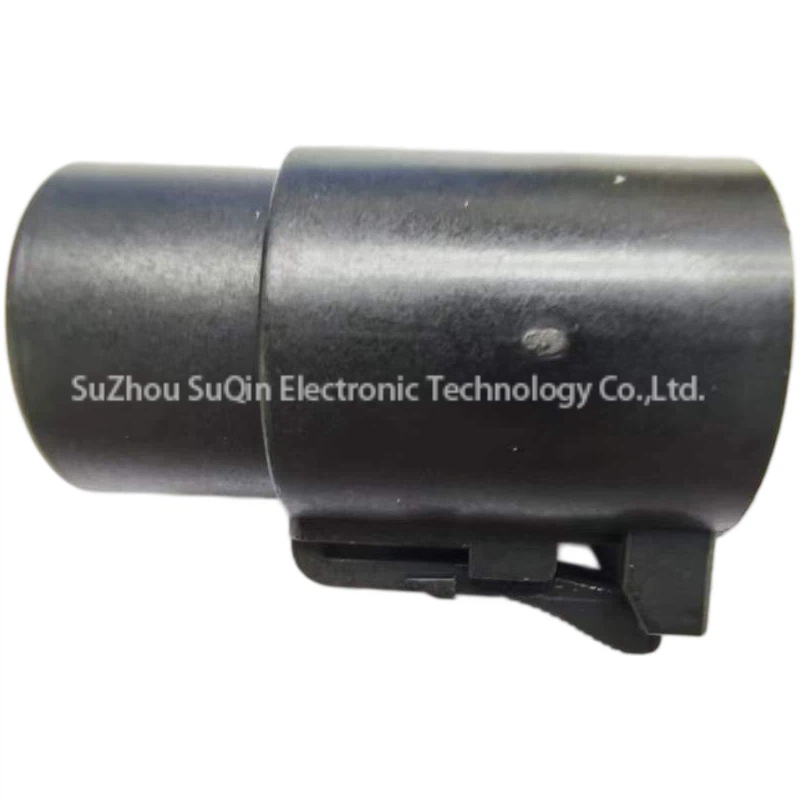

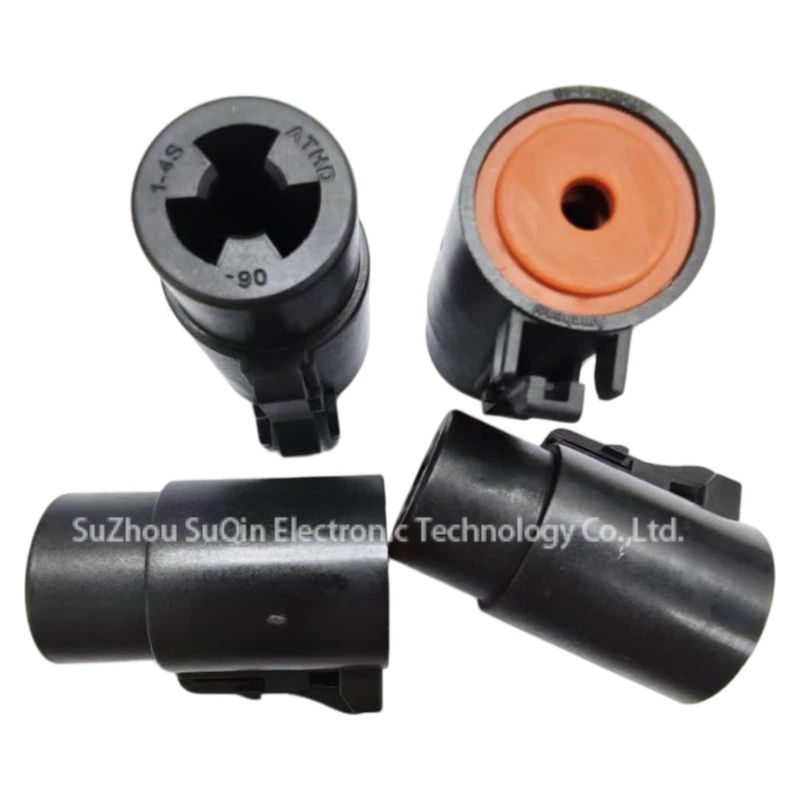

Amphenol ATHD06-1-4S ATHD Series 1-Pin Heavy Duty Power Plug | Suqin
Short Description:
-
Brand Manufacturer: Amphenol Sine Systems Corp
-
MPN (Part Number): ATHD06-1-4S (Base Number: ATHD06)
-
Product Series Family: ATHD Series™
-
Connector Product Type: Plug Housing
-
Contact Type Compatibility: Female Socket (Contacts Sold Separately)
-
Total Circuit Positions: 1 Position (Dedicated Power)
-
Contact Size Integration: Size 4 Power Contact
-
Contact Shape Design: Circular
-
Contact Termination Method: Crimp
-
Mounting Type Integration: Free Hanging (In-Line)
-
Fastening & Locking Mechanism: Integrated Latch Lock
Product Detail
Product Tags
Buy Amphenol ATHD06-1-4S ATHD Series 1-position heavy-duty power plug housing at Suqin. Features IP67/IP69K environmental sealing, rugged thermoplastic shell, and Size 4 power contact compatibility for harsh inline vehicle or industrial applications.
Data Overview
| Technical Parametric Attributes | Spec Detail Values |
| Manufacturer | Amphenol Sine Systems Corp |
| Product Part Number | ATHD06-1-4S |
| Base Product Number | ATHD06 |
| Product Category | Circular Connectors – Housings |
| Product Series | ATHD Series™ |
| Connector Type | Plug Housing |
| Type of Contact | For Female Sockets |
| Number of Positions | 1 Position (Power) |
| Contact Size | Size 4 |
| Contact Shape | Circular |
| Contact Termination | Crimp |
| Mounting Type | Free Hanging (In-Line) |
| Fastening Type | Latch Lock |
| Shielding | Unshielded |
| Ingress Protection Rating | IP67 / IP69K (Dust-Tight, Waterproof) |
| Housing Material | Engineering Thermoplastic |
| Primary Housing Color | Black |

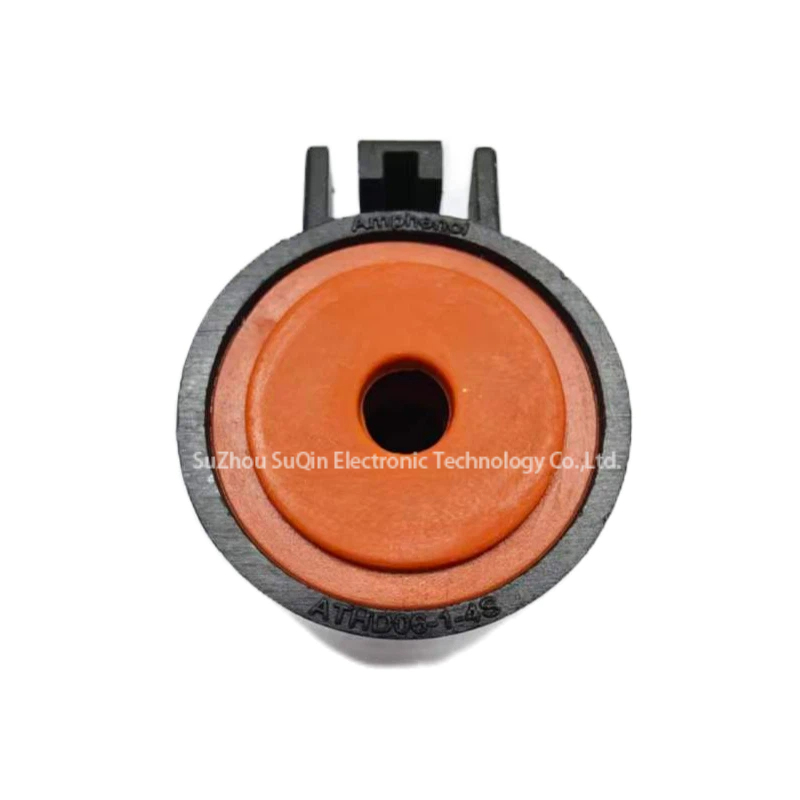

| Seal Material | Orange Silicone Rubber |
| Operating Temperature Range | -55°C ~ 125°C |
| Part Status | Active |

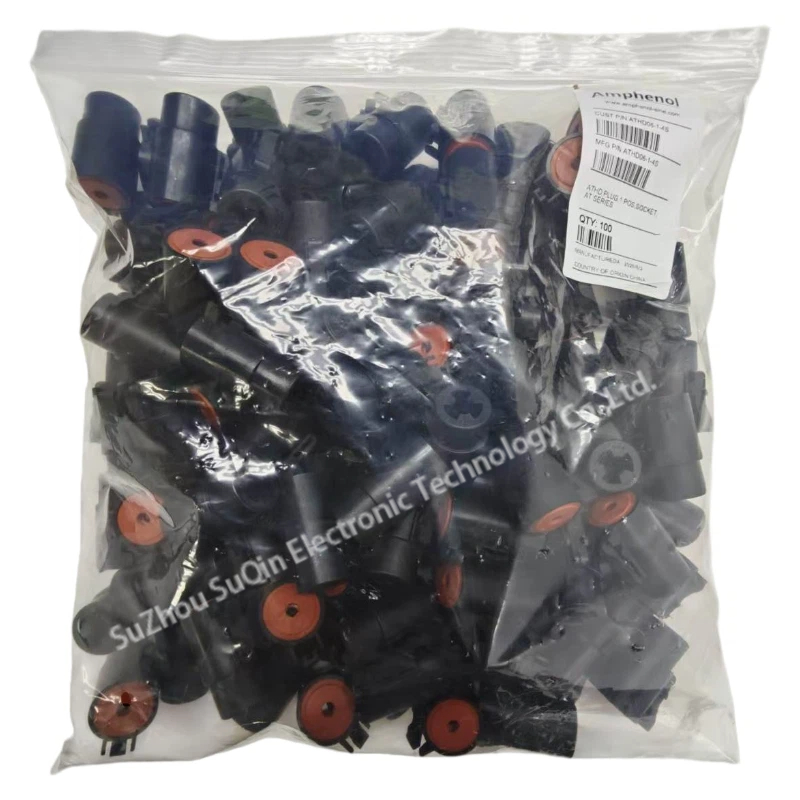

| Packaging Specification | Industrial Bulk Pack |
| Procurement Note | Female Crimp Contacts Sold Separately |
Product Details
| Core Specifications | Engineering Advantages | Operational Benefits |
| IP67 / IP69K Waterproof Sealing | Features an advanced rear silicone rubber seal that withstands submersion and high-pressure, high-temperature jet washdowns. | Prevents moisture, dust, and fluid contamination, entirely eliminating field short circuits in extreme off-road and marine environments. |
| Dedicated Size 4 Power Chamber | Heavy-walled circular terminal cavity engineered specifically to hold and isolate a high-amperage Size 4 power contact terminal. | Enables safe, low-resistance delivery of heavy-duty power lines through a compact single-pole interface, reducing chassis complexity. |
| Integrated Thermoplastic Latch Lock | Molded directly onto the impact-resistant polymer housing, the snap-on latch ensures a definitive, hand-mating positive lock. | Eliminates accidental disconnects caused by intense mechanical vibrations or cable tugging, ensuring continuous uptime. |
| Streamlined Single-Position Inline Build | Ultra-compact, free-hanging design optimizes wire-to-wire path routing without requiring mounting hardware. | Minimizes structural weight and fits seamlessly within tight wiring harnesses, making field retrofits and maintenance quick and effortless. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: Does the ATHD06-1-4S plug housing come with the internal female socket?
No. The ATHD06-1-4S part number represents the empty thermoplastic plug housing shell and its integrated environmental rear silicone seal. The Size 4 female crimp power contact must be purchased separately based on your application’s wire gauge requirements.
Q2: What kind of environmental protection does this connector offer?
This plug achieves both IP67 and IP69K ratings when mated properly with its matching receptacle. This means it is entirely dust-tight, handles complete immersion in water (IP67), and can withstand close-range, high-pressure, high-temperature washdowns (IP69K), making it ideal for heavy machinery and commercial vehicles.
Q3: What is the main application for the Amphenol ATHD series?
The ATHD Series™ is specifically engineered as an unshielded, single-pole, heavy-duty inline power connection system. It is widely used as an alternative to expensive, bulky metal-shell circular connectors when you need to route high-current power lines through harsh, high-vibration environment zones.
