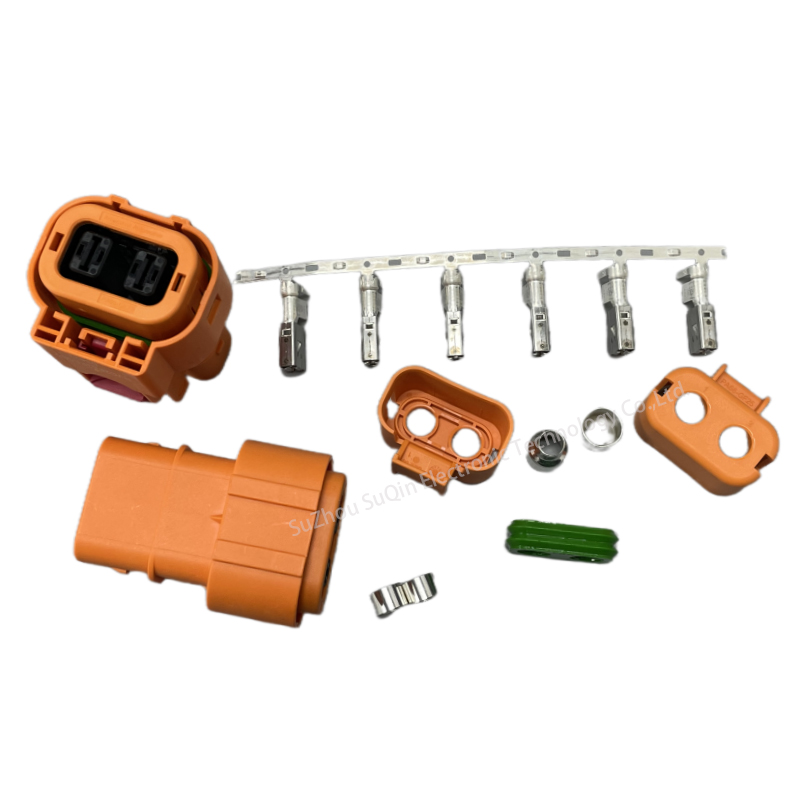

HVC2P63FS106: 2 POSITION PLUG HV LOOP EMC SHIELD Amphenol

Short Description:

  • Part Number & Series: Amphenol HVC2P63FS106 | HVC (High Voltage Connector) Series

  • Type & Circuit Layout: 2-Position, 1-Row High-Voltage Female Plug (Free Hanging / In-Line)

  • Voltage & Current Rating: 1000 V AC/DC (CAT III) operational voltage, 63 A continuous current capacity per contact

  • Cable Accommodation & Shielding: Designed for 6.0 mm² (10 AWG) shielded cable, integrated 360° EMC shield (>60 dB attenuation from 100 MHz to 1 GHz)

  • Material & Protection Specs: PBT + 30% Glass Fiber (UL94 V-0) housing, IP67 ingress protection rating (mated), operating temperature -40 deg C to +150 deg C


Product Detail

Product Tags

Amphenol HVC2P63FS106 HVC Series 2-position 1000V 63A female high-voltage automotive connector. Features 360° EMC shielding (>60dB), 6.0mm² (10 AWG) shielded cable entry, PBT-GF30 housing, and IP67 rating. Available via Suzhou Suqin.

Data Overview

Technical ParameterSpecification Value
Mfr. Part NumberHVC2P63FS106
ManufacturerAmphenol
Series NameHVC (High Voltage Connector) Series
Product CategoryAutomotive High-Voltage Connectors
Connector TypeHigh-Voltage Female Plug
Connector GenderFemale
Number of Positions2 Positions
Rated Voltage1000 V AC/DC (CAT III)
Continuous Current Rating63 A Continuous (per contact)
Compatible Cable Size6.0 mm² (10 AWG) Shielded Cable
Mounting TypeFree Hanging (In-Line)
EMC Shielding360° EMC Shielded (>60 dB attenuation @ 100 MHz – 1 GHz)
Housing MaterialThermoplastic PBT + 30% Glass Fiber (PBT-GF30)
Material Flammability RatingUL94 V-0
Ingress Protection RatingIP67 (when mated)
Operating Temperature Range-40 deg C to +150 deg C (peak)
Primary Locking FeatureIntegrated Latch / Contact Retainer
Target ApplicationsEV Battery Packs, Inverters, PDU (Power Distribution Units), High-Voltage Auxiliary Systems

Product Details

1000V / 63A High-Voltage EV Power Delivery360° Full EMC Shielding (>60dB Attenuation)Flame-Retardant PBT-GF30 & IP67 Environmental Protection
High-Current EV Circuit Performance

Engineered for electric vehicle power distribution, battery systems, and auxiliary high-voltage units, supporting up to 1000 V AC/DC and continuous 63 A power transmission per circuit.
High-Frequency Electromagnetic Interference Suppression

Features an integrated 360-degree metallic shield enclosure delivering >60 dB EMI attenuation across 100 MHz to 1 GHz frequencies to protect sensitive vehicle CAN-bus electronics.
Thermal Stability & Ingress Sealing

Molded from PBT with 30% glass fiber reinforcement meeting UL94 V-0 flame standards, providing IP67 sealing when mated and temperature resilience from -40 deg C to +150 deg C.

Our advantage

● Brand supply diversification,
Convenient one-stop shopping

● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.

● Complete information, fast delivery
Reduce intermediate links

● Good after-sales service
Quick response, professional reply

● Original genuine guarantee
Support professional consultation

● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

Q1: What cable specifications are required for the Amphenol HVC2P63FS106 connector?

The HVC2P63FS106 is designed for 6.0 mm² (10 AWG) high-voltage shielded automotive cable to maintain proper crimp retention, EMC shielding continuity, and IP67 environmental sealing.

Q2: What is the maximum voltage and current capacity of HVC2P63FS106?

The HVC2P63FS106 connector is rated for 1000 V AC/DC (CAT III) operating voltage and up to 63 A continuous current per contact in electric vehicle and power distribution applications.

Q3: What level of EMI protection does the HVC2P63FS106 offer?

It features an integrated 360-degree metallic EMC shielding system that provides over 60 dB of EMI attenuation within the 100 MHz to 1 GHz frequency range, preventing high-voltage switching noise from interfering with onboard electronics.
