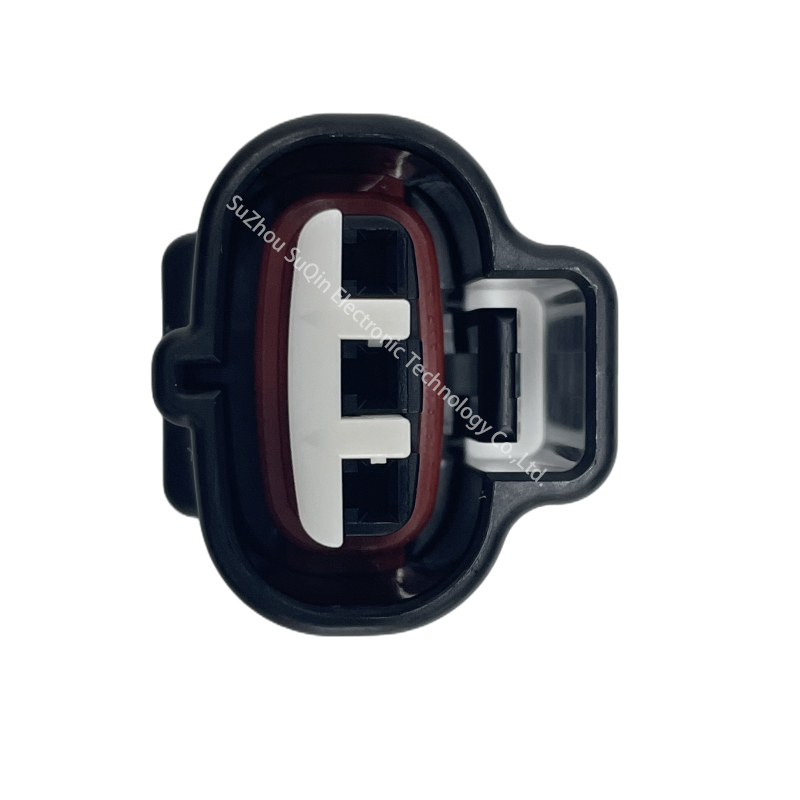

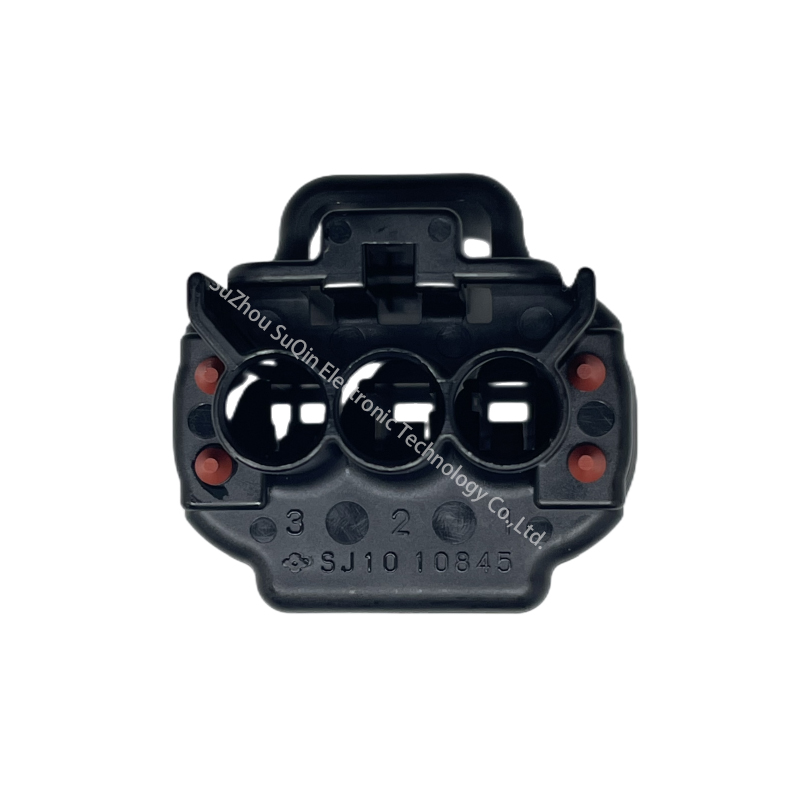

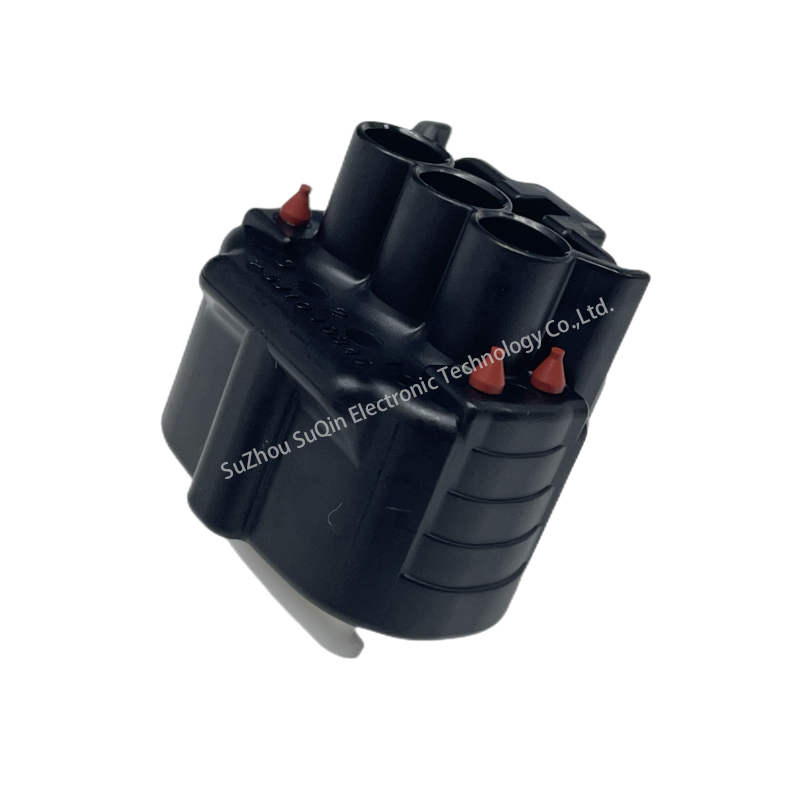

SUMITOMO 3 pins waterproof auto wire harness connector 6189-0099
Short Description:
-
Part Number & Series: Sumitomo 6189-0099 | TS Waterproof Series (2.3mm / 090 System)
-
Type & Mounting: 3-Position, 1-Row Male Connector Housing, Integrated 9 mm T-Type Bracket Fixation Structure
-
Terminal & Contact: Accepts 2.3 mm (.090 in) male tab terminals, initial contact resistance <= 3 mΩ (including crimp), post-durability resistance <= 10 mΩ
-
Sealing & Electrical Specs: Waterproof sealed design with initial leak test rating >= 50 kPa (post-durability >= 30 kPa), insulation resistance >= 100 MΩ, max leakage current 100 μA
-
Material & Color: Polybutylene Terephthalate (PBT) gray housing, engineered for automotive wire-to-wire and wire-to-bracket applications
Product Detail
Product Tags
Sumitomo TS Series 6189-0099 3-position 2.3mm (090) male waterproof connector housing. Features 9mm bracket mount, PBT gray material, 50kPa initial sealing performance, and compatibility with 6189-0179 / 6188-0099. Available via Suzhou Suqin.
Data Overview
| Technical Parameter | Specification Value |
| Mfr. Part Number | 6189-0099 |
| Manufacturer | Sumitomo Wiring Systems |
| Series Name | TS Waterproof Series |
| Product Category | Automotive Connectors / Connector Housings |
| Connector Type | Male Connector Housing (Housing for Male Terminals) |
| Number of Positions | 3 Position |
| Terminal Size (Tab Width) | 2.3 mm (.090 in) |
| Connector Gender | Male (M) |
| Mounting Feature | Bracket Mount / Fixation (T-Type, 9 mm Bracket Size) |
| Mating Counterpart | 6189-0179 / 6188-0099 (TS Waterproof Series) |
| Sealing Status | Sealed / Waterproof |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Housing Color | Gray |
| Initial Contact Resistance | <= 3 mΩ (including crimp section) |
| Post-Durability Contact Resistance | <= 10 mΩ (including crimp section) |
| Insulation Resistance | >= 100 MΩ |
| Maximum Leakage Current | 100 μA |
| Initial Sealing Capability | >= 50 kPa |
| Post-Durability Sealing Capability | >= 30 kPa |
| Circuit Application | Automotive Power & Signal Wiring |
Product Details
| 2.3mm (090) 3-Pin Male Interface | Integrated 9mm Bracket Mount Structure | Automotive PBT & High-Pressure Sealing |
| Standard 090 Signal & Power Terminal Interface Designed for Sumitomo TS series 2.3 mm male terminals in a 3-position layout, maintaining low resistance (initial <= 3 mΩ) for automotive power and sensor connections. | Vibration-Resistant Bracket Fixation Features an integrated T-Type mounting slot engineered for 9 mm frame brackets, securing the wire harness directly to vehicle body panels without additional mounting hardware. | Engineered Thermoplastic & Liquid Ingress Protection Molded from gray PBT resin, achieving an initial air-tightness seal rating >= 50 kPa and maintaining >= 30 kPa after durability endurance testing. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: What mating counterpart connectors pair with Sumitomo 6189-0099?
Sumitomo 6189-0099 mates directly with female connector housing part numbers 6189-0179 and 6188-0099 within the Sumitomo TS Waterproof 2.3mm (090) series.
Q2: How does the bracket mounting feature on 6189-0099 function?
The 6189-0099 housing incorporates an integrated T-type slide slot designed to mount directly onto standard 9 mm metal body or frame brackets, securing the connector assembly against operational vibration.
Q3: What are the sealing performance specifications for the 6189-0099 housing?
The 6189-0099 holds an initial sealing air tightness rating of >= 50 kPa, and retains a sealing capability of >= 30 kPa following durability and environmental endurance testing.
