KET Automotive terminal connector ST731409-3
Short Description:
-
Part Number & Series: KET (Korea Electric Terminal) | Part Number: ST731409-3 | Series: C025 Series
-
Product Type & Contact Gender: Automotive Unsealed Crimp Contact; Female Socket Terminal (0.64mm / .020″ mating tab width)
-
Wire Range & Insulation O.D.: Fits AVSS 0.3 mm² to 0.5 mm² / FLRY-A 0.35 mm² wire gauges; insulation outer diameter 1.4 mm to 1.7 mm
-
Material & Plating: High-conductivity Phosphor Bronze substrate; Pre-Tin (Sn) surface plating; 10 mΩ max initial contact resistance
-
Electrical & Mechanical Rating: 5.0 A max rated current; housing lance primary locking; operating temperature range -40°C to +120°C; RoHS compliant
Product Detail
Product Tags
KET ST731409-3 C025 series 0.64mm (.020″) unsealed female crimp terminal. Pre-tin plated phosphor bronze construction for AVSS 0.3–0.5mm² automotive wire harness applications. Rated for 5A. Available via Suzhou Suqin.
Data Overview
| Technical Parameter | Specification Value |
| Mfr. Part Number | ST731409-3 (ST 731409-3) |
| Manufacturer | KET (Korea Electric Terminal) |
| Product Series | C025 Series |
| Product Category | Automotive Crimp Terminals |
| Terminal Gender / Type | Female Socket Terminal |
| Mating Tab Width | 0.64 mm (0.020 in / .020) |
| Sealing Status | Unsealed (Non-Sealed) |
| Applicable Wire Range | AVSS 0.3 mm² – 0.5 mm² / FLRY-A 0.35 mm² |
| Wire Insulation O.D. | 1.40 mm – 1.70 mm |
| Contact Material | Phosphor Bronze (Copper Alloy) |
| Contact Plating | Pre-Tin (Sn) |
| Current Rating | 5.0 A Max |
| Contact Resistance | 10 mΩ Max (Initial) |
| Primary Locking Mechanism | Housing Lance (HSG Lance) |
| Physical Dimensions (L x W x H) | 14.85 mm x 1.45 mm x 2.525 mm |
| Operating Temperature Range | -40°C to +120°C |
| Application | Automotive Wire Harness & Electronic Control Units |

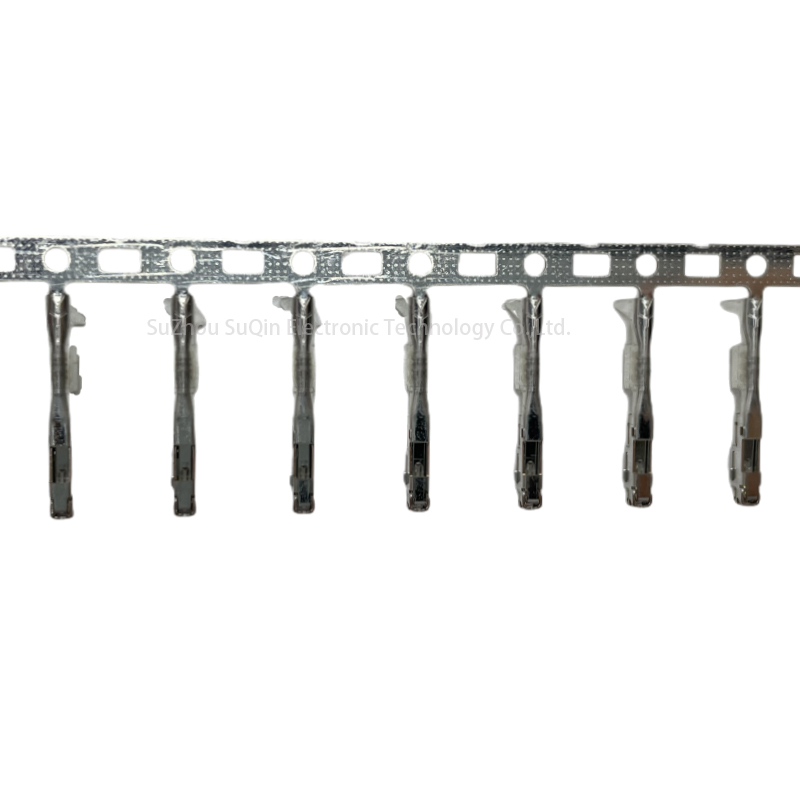

| Standard Packaging | Reel / Strip Terminal |
| RoHS Compliance | Compliant |
Product Details
| High-Conductivity Pre-Tin Phosphor Bronze Substrate | Precision C025 Series 0.64mm Terminal Geometry | Housing Lance Primary Locking Architecture |
| Stamped from high-grade phosphor bronze with uniform pre-tin plating, providing superior oxidation resistance, low contact resistance (≤10mΩ), and stable electrical conductivity under thermal cycling. | Formed with precise 0.64 mm (.020 in) female socket receptacle dimensions, engineered for reliable low-insertion-force mating with C025 series male terminals and connectors. | Incorporates housing lance retention geometry that locks securely inside C025 connector housing cavities, preventing terminal push-out during wiring assembly and high-vibration operation. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: What connector housings and male terminals mate with KET ST731409-3?
KET ST731409-3 is a female terminal for the C025 series. It inserts into KET C025 female housings and mates with corresponding C025 male terminals or PCB header male pins with 0.64mm tab width.
Q2: What wire gauge and crimp specifications are recommended for ST731409-3?
The terminal is designed for automotive thin-wall wires with cross-sections of 0.3 mm² to 0.5 mm² (AVSS 0.3/0.5 or FLRY-A 0.35) and an outer insulation diameter range of 1.4 mm to 1.7 mm. Standard crimp applicators tuned to C025 terminal geometry should be used.
Q3: What is the primary locking mechanism of KET ST731409-3 in the housing cavity?
ST731409-3 utilizes a Housing Lance locking system where a flexible retention beam inside the C025 connector housing engages with the locking notch on the terminal body, ensuring secure positioning and high pull-out resistance.
