Molex MicroClasp 0513534000 40-Position Receptacle Housing | Suqin
Short Description:
-
Manufacturer & Series: Manufactured by Molex under the MicroClasp product family, belonging to the 051353 base product series with part number 0513534000.
-

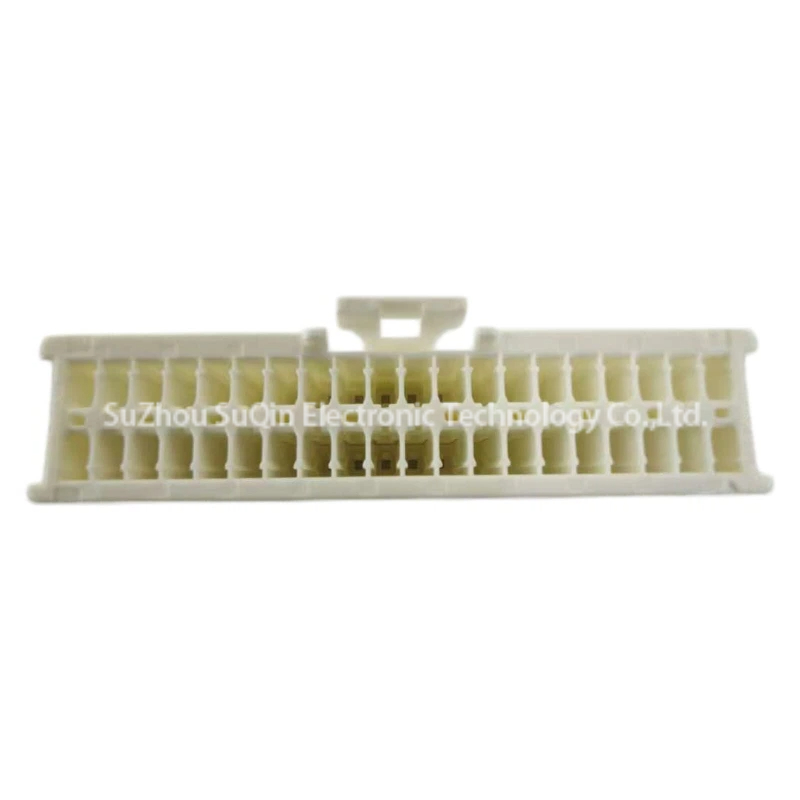

Configuration & Layout: Features a high-density 40-position dual-row matrix layout with a 2.00 mm (0.079 in) centerline pitch and 5.00 mm (0.197 in) row-to-row spacing.
-

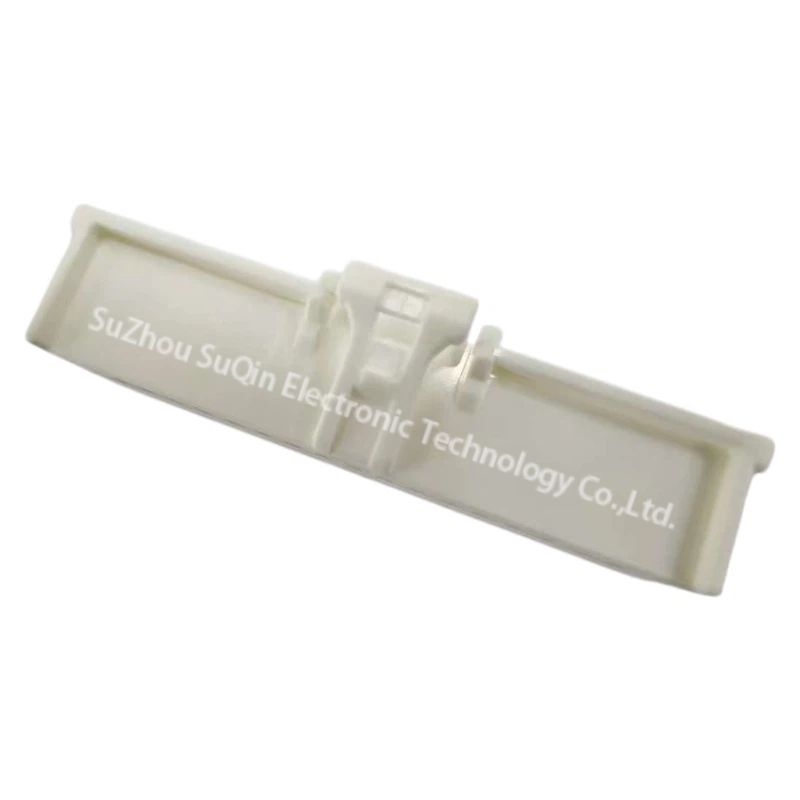

Locking Mechanism: Equipped with an integrated centralized external latch lock mechanism to secure structural retention against inadvertent demating under vibration.
-

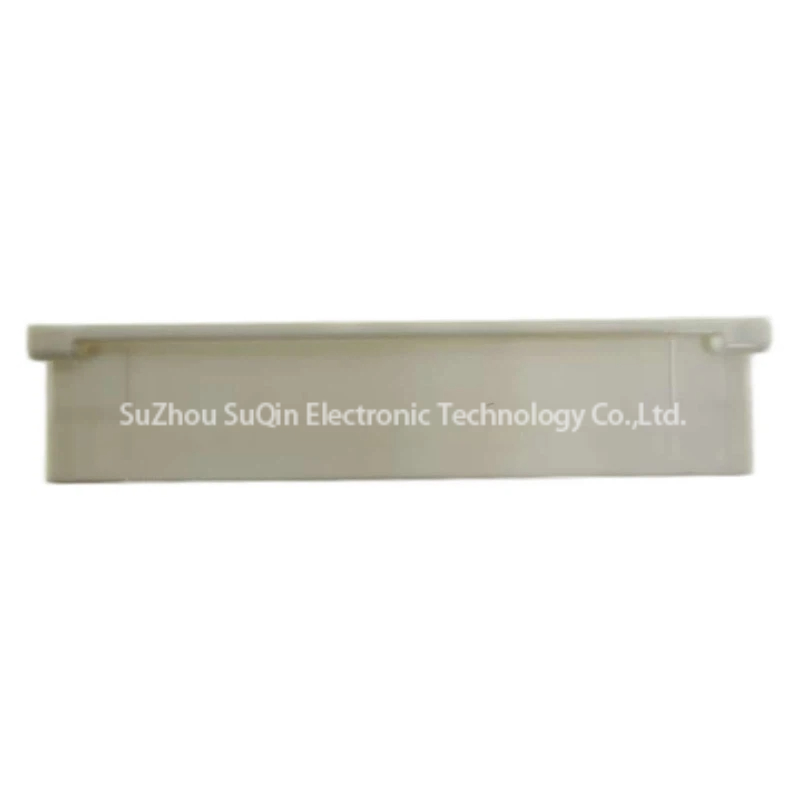

Material Composition: Injection-molded from unsealed white Polyamide (PA66, Nylon 6/6) thermopolymer material offering a continuous operational temperature rating of -40°C to 105°C.
-
Mounting & Termination: Designed for free-hanging (in-line) cable wire harness assemblies, utilizing crimp termination methods for female socket contacts.
Product Detail
Product Tags

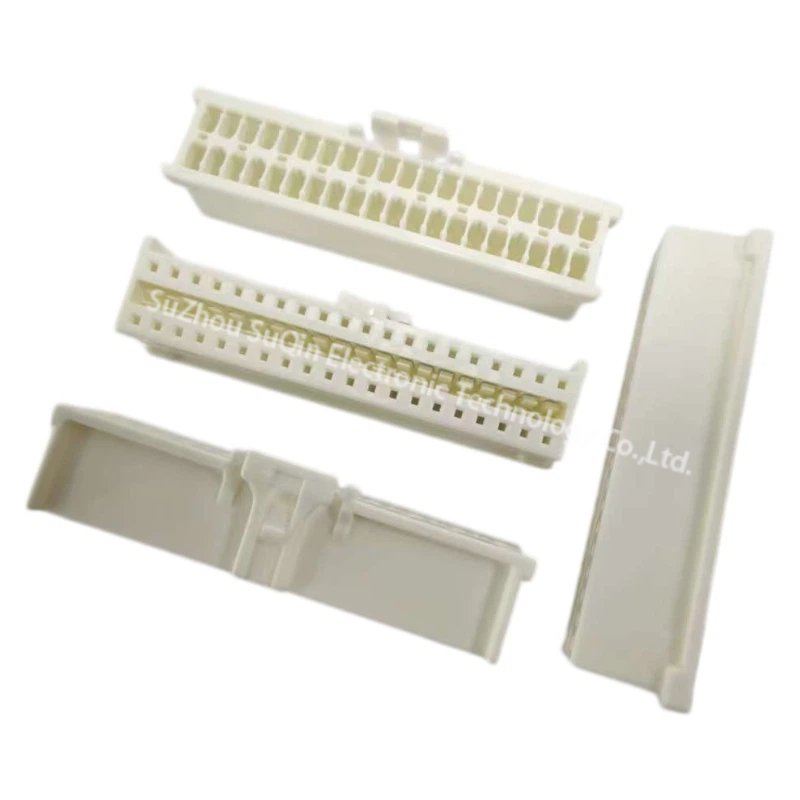

Factory-original Molex MicroClasp Series 0513534000 40-position dual-row receptacle housing. Features 2.00 mm pitch, 5.00 mm row spacing, white PA66 nylon insulation, and integrated latch lock. Available via Suzhou Suqin.
Data Overview
| Parameter | Technical Specification |
| Manufacturer | Molex |
| Part Number | 0513534000 (Alternative: 51353-4000) |
| Base Product Number | 051353 |
| Series | MicroClasp 51353 |
| Product Category | Headers & Wire Housings |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Number of Positions | 40 |
| Number of Rows | 2 (2 x 20 Matrix Layout) |
| Pitch | 2.00 mm (0.079 in) |
| Row Spacing | 5.00 mm (0.197 in) |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Housing Color | White |
| Operating Temperature Range | -40°C to 105°C |

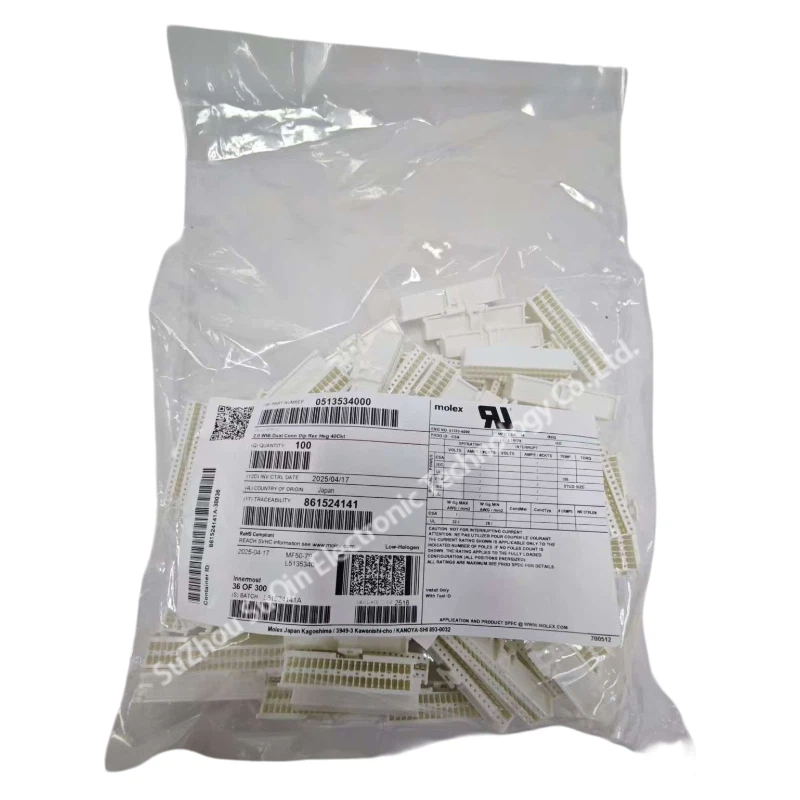

| Packaging | Bag |
| Part Status | Active |
| Note | Contacts Sold Separately |
Product Details
| Mechanical Structure & Mounting | Electrical Transmission & Insulation | Environmental Sealing & Material |
| 40-Position Dual-Row Layout Features a high-density 2 x 20 inline spacing alignment integrated with a top-mounted mechanical latch lock lever. | 2.00mm High-Density Pitch Grid Dual-row contact pitch designed for multi-circuit wire-to-board signal transmission with an expanded 5.00mm row spacing footprint. | Polyamide PA66 Nylon Housing Non-sealed, robust polyamide (PA66) insulation shell built for continuous operational temperatures from -40°C to 105°C. |
| Prevents partial insertion and maintains mechanical polarization to eliminate mis-mating errors during manual cable routing. | Formulated with defined internal divider walls to eliminate terminal-to-terminal shorting risks across all 40 independent circuits. | Ensures optimal resistance against structural deformation and chemical degradation across typical indoor control panel networks. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: Are the internal female socket crimp terminals included with the 0513534000 housing?
A: No. The 0513534000 part number corresponds strictly to the empty plastic white receptacle housing block. Internal female crimp socket terminals must be ordered separately based on your specific wire gauge (AWG) and plating requirements.
Q2: What is the engineering purpose of having a 5.00mm row spacing alongside a 2.00mm pitch?
A: This specific MicroClasp design utilizes a compact 2.00mm pitch along the rows to maintain a small physical layout footprint, while extending the row spacing to 5.00mm to accommodate the mechanical integration of the positive locking latch tracks and ensure high dielectric separation between the two rows.
Q3: Does this 51353 series receptacle housing provide environmental fluid ingress protection?
A: No. This connector is a non-sealed rectangular housing manufactured from Polyamide (PA66) nylon material. It is engineered for indoor, protected control boxes, or automotive in-cabin applications within a temperature envelope of -40°C to 105°C where direct exposure to moisture or liquids is not present.
