TE Connectivity 1-2112891-4 36-Position Automotive Housing Blue | Suqin
Short Description:
-
Manufacturer & Type: TE Connectivity 36-position rectangular housing for male terminals, part number 1-2112891-4.
-
Application & Voltage: Designed for unsealed wire-to-wire automotive systems, supporting 12V / 24V nominal voltage architectures (36 VDC maximum).
-
Material Classification: Molded from blue PBT GF10 (glass fiber reinforced) thermoplastic with a UL 94HB flammability rating.
-
Locking & Retention: Equipped with an integrated primary locking mechanism and Terminal Position Assurance (TPA) for contact retention.
-
Pitch & Geometry: Features a 4 mm [.157 in] centerline pitch, 4.2 mm [.165 in] row-to-row spacing, and a 180° straight cable exit angle.
Product Detail
Product Tags
Factory-original TE Connectivity 1-2112891-4 36-position blue automotive housing for male terminals. Features 4-row wire-to-wire structure, keying code D, and PBT GF10 construction. Available at Suzhou Suqin.
Data Overview
| Parameter | Technical Specification |
| Manufacturer | TE Connectivity |
| Part Number | 1-2112891-4 |
| Connector Type | Housing for Male Terminals |
| Connector Shape | Rectangular |
| Connector System | Wire-to-Wire |
| Number of Positions | 36 Positions |

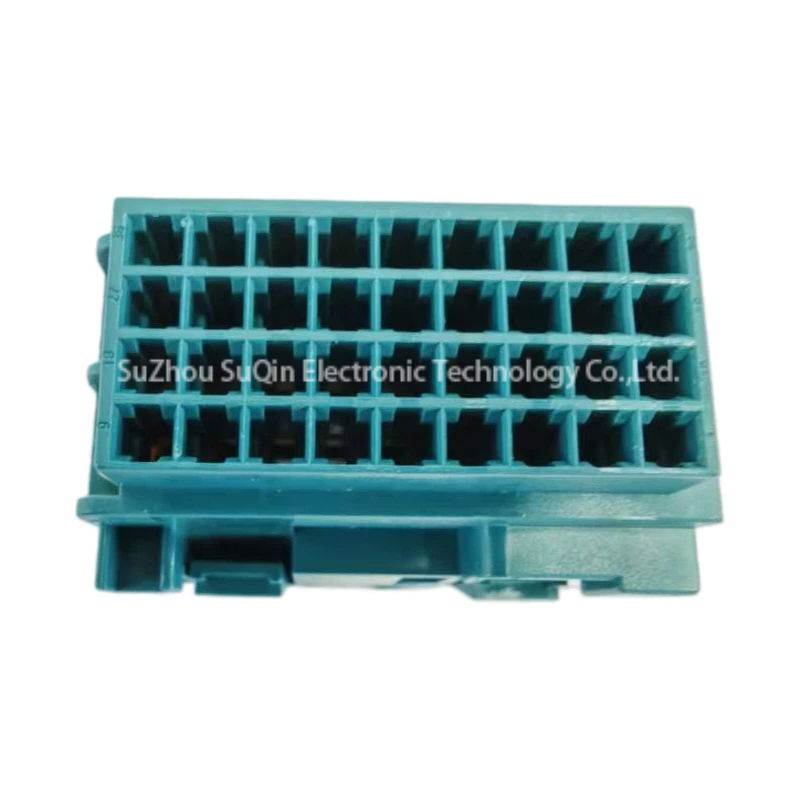

| Number of Rows | 4 Rows |
| Centerline (Pitch) | 4 mm [.157 in] |
| Row-to-Row Spacing | 4.2 mm [.165 in] |
| Keying Code | Code D |
| Primary Product Color | Blue |

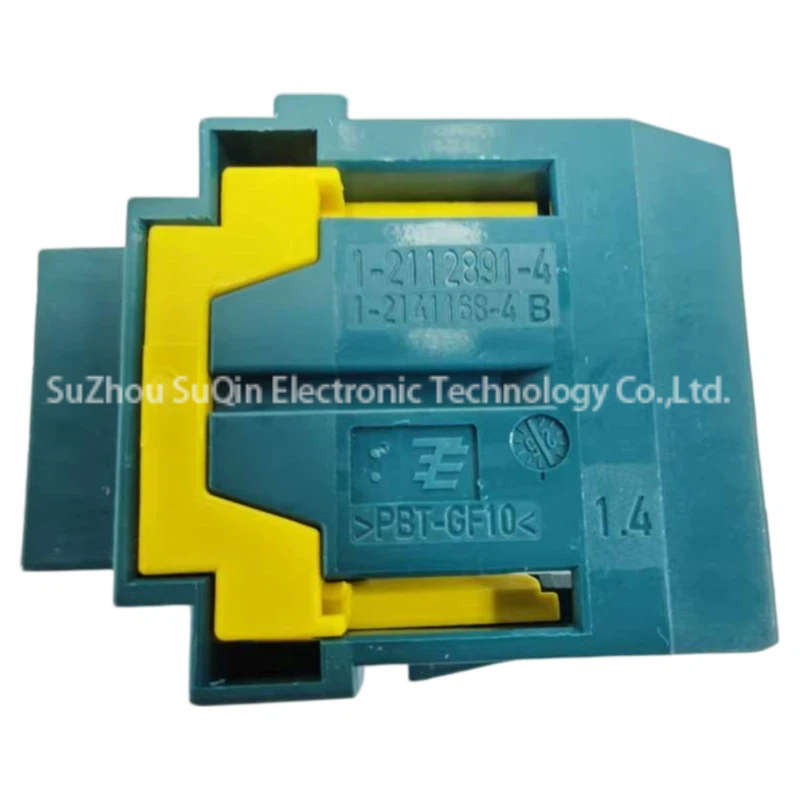

| Housing Material | PBT GF10 |
| Contact Type / Size | Tab / 1.6 mm |
| Mating Tab Width | 1.6 mm [.063 in] |
| Contact Current Rating (Max) | 10 A |
| Operating Voltage | 36 VDC |
| Nominal Voltage Architecture | 12V / 24V |
| Sealable | No |
| Terminal Position Assurance (TPA) | Yes |
| Cable Exit Angle | 180° (Straight) |
| Mounting Type | Cable Mount (Free-Hanging) |
| Dimensions (L x W x H) | 44.6 mm x 30.5 mm x 38.8 mm |
| Operating Temperature Range | -40°C to 120°C |
| UL Flammability Rating | UL 94HB |
Product Details
| Circuit & Electrical Architecture | Mechanical Alignment & Locking | Material & Thermal Rating |

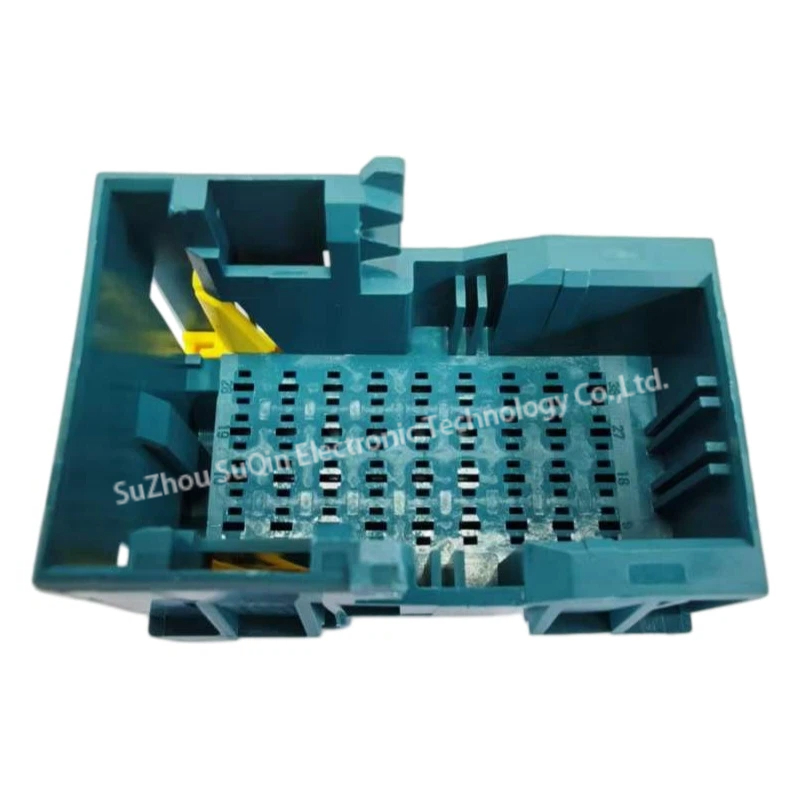

| 36-Position 4-Row Matrix Accommodates 36 male pin contacts (1.6 mm tab width) rated for up to 10A continuous current per circuit. | Keyed Alignment Code D Molded mechanical keying code D configuration with a built-in primary lock and a yellow TPA lock component. | PBT GF10 Structural Shell Glass-reinforced thermoplastic housing body rated for operating temperatures from -40°C to 120°C. |
| Supports multi-channel low-voltage power and signal distribution within automotive electrical wiring systems. | Prevents mis-mating during installation and secures terminal positioning against wire pull-out forces. | Maintains structural dimensional tolerances and electrical insulation compliance under designated thermal conditions. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: Are the male tab terminals included with the 1-2112891-4 housing?
A: No. The 1-2112891-4 part number designates the plastic housing and its integrated yellow TPA locks only. The compatible 1.6 mm male tab contacts must be specified and ordered as separate line items.
Q2: Does this automotive housing feature environmental or moisture seals?
A: No. This connector housing is classified as an unsealed (Non-Sealable) variant under its technical specifications and does not contain silicone seals or perimeter gaskets.
Q3: What is the significance of the “Code D” specification for this part number?
A: Code D represents the specific mechanical keying molded into the PBT shell. This housing will only mate with a corresponding Code D female plug to prevent cross-connections in multi-harness architectures.
