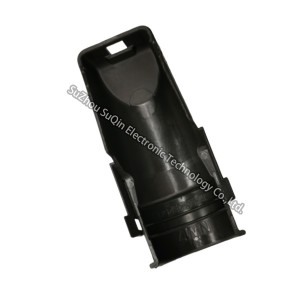

2112452-1Connector Backshells 22 Position TE
22 Position
Black
Cover – Cable Exit
PA GF
90° Cable Exit
-40 – 130 °C [-40 – 266 °F] -

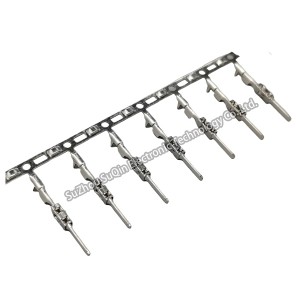

964265-2 Timer Connector Tab Terminal TE
Tab Terminal
24 – 22 AWG
.2 – .35 mm² Wire
1.6 mm [.063 in] Tab Width
Tin (Sn)
.6 mm [.024 in] Tab Thickness
Timer Connector System -

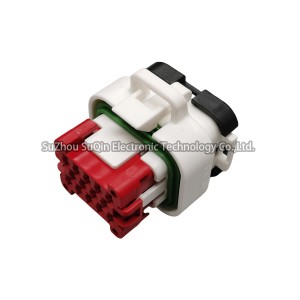

776273-2 AMPSEAL Receptacle Housings14 Position Housing TE
14 Position Housing
Housing for Female Terminals
Wire-to-Board
4 mm [.157 in] Centerline
Sealable
Natural
Wire & Cable
Power
AMPSEAL -
174657-2 Automotive Connectors10 Position Housing for Male Terminals TE
10 Position Housing
Housing for Male Terminals
Wire-to-Wire
4.8 mm [.189 in] Centerline
Sealable
Black
Wire & Cable
Power -
170452-1Connectivity / AMP Quick Disconnect Receptacle TE
Quick Disconnect Receptacle
22 – 20 AWG
.32 – .51 mm² Wire
6.35 mm [.25 in] Tab Width
Straight
Brass
Unplated Plating
Reel
Positive Lock 250 -
3-2299782-2 Heavy Duty Sealed Connector Series 6 Position Housing TE
6 Position Housing
Housing for Female Terminals
Wire-to-Wire
6 mm / 9 mm [.24 in / .354 in] Centerline
Heavy Duty Sealed Connector Series -
2-1563759-1 Automotive Parts 18 Position Housing TE
18 Position Housing
Housing for Female Terminals
Wire-to-Wire
4 mm [.157 in] Centerline
Sealable
Black -
1-1823440-3 Automotive Connectors 22 Position Housing TE
22 Position Housing
Housing for Female Terminals
Wire-to-Wire
4 mm / 6 mm [.157 in / .236 in] Centerline
Sealable
Black
Wire & Cable -
964971-1Connector Accessories Single Wire Seal (SWS) TE
Single Wire Seal (SWS)
3.6 mm [.142 in] Cavity Diameter
-40 – 130 °C [-40 – 266 °F]
Red
Silicone
