2005097-1 TH/.025 CONNECTOR SYSTEM TE Connectivity
TE Internal : 2005097-1
TE Internal Description: 025 RECEPTACLE CONTACT
All TH/.025 CONNECTOR SYSTEM, RECPT AND TAB (17)
Terminal Type : Receptacle
Wire Size (AWG): 26 – 24
Wire Size (mm²): .13 – .22
Mating Tab Width : .64 mm [ .025 in ]
Interface Plating : Tin (Sn) -
1123343-1 Rectangular Connector Contacts TE Connectivity
TE Internal : 1123343-1
TE Internal Description: 025 REC CONTACT
Alias : AMP-0-1123343-1 EM3607-000
All TH/.025 CONNECTOR SYSTEM, RECPT AND TAB (17)
Terminal Type : Receptacle
Wire Size (AWG): 24 – 20
Wire Size (mm²): .22 – .56
Mating Tab Width : .64 mm [ .025 in ]
Interface Plating : Tin (Sn) -

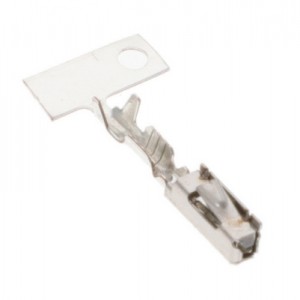

1355717-1 Rectangular Connector Contacts TE
TE Internal : 1355717-1
TE Internal Description: MQS0,63 Sn rec LL unseal. 0,08-0,22
All MQS, RECEPTACLE AND TAB (96)
Terminal Type : Receptacle
Wire Size (AWG): 28 – 24
Wire Size (mm²): .08 – .22
Mating Tab Width : .63 mm [ .025 in ]
Interface Plating : Tin (Sn) -

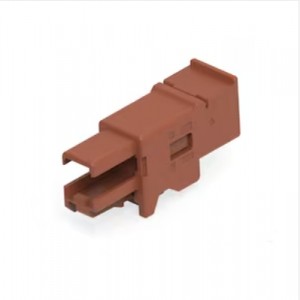

2293641-4 Data Connectivity Housings TE Connectivity
TE Internal : 2293641-4
TE Internal Description: PLUG HOUSING BODY 0.50 HSL CONN. KEY-D
Connector System : Wire-to-Board
Sealable : No
Cable Exit Angle : 180°
Number of Positions : 1
Connector & Keying Code : D -

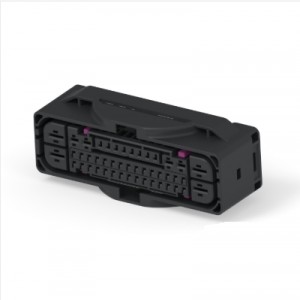

9-2354766-9 Automotive Housings Connectors
TE Internal : 9-2354766-9
TE Internal Description: 46POS. REC HOUSING ASSY
Number of Positions : 46
Connector & Housing Type : Housing for Female Terminals
Mating Tab Width (mm): 1.2, 2.8, 4.8
Mating Tab Width (in): .04, .11, .18
Connector System : Wire-to-Board
Centerline (Pitch) (mm): 3.8, 6
Centerline (Pitch) (in): .14, .24 -

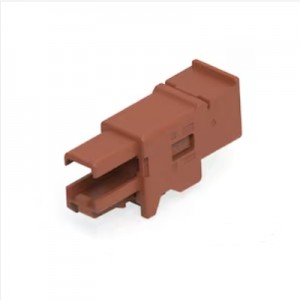

2293641-4 Data Connectivity Housings TE Connectivity
TE Internal : 2293641-4
TE Internal Description: PLUG HOUSING BODY 0.50 HSL CONN. KEY-D
Connector System : Wire-to-Board
Sealable : No
Cable Exit Angle : 180°
Number of Positions : 1
Connector & Keying Code : D -
284425-1 TE Connectivity 3 POS CONN FOR INJECTION
TE Internal : 1-284425-1
TE Internal Description: 3 POS CONNECTOR FOR INJECTION
All AMP MCP, SEALED CONNECTOR HOUSING (97)
Number of Positions : 3
Connector & Housing Type : Housing for Female Terminals
Mating Tab Width : 1.5 mm [ .059 in ]
Connector System : Wire-to-Wire
Centerline (Pitch) : 4 mm [ .157 in ] -

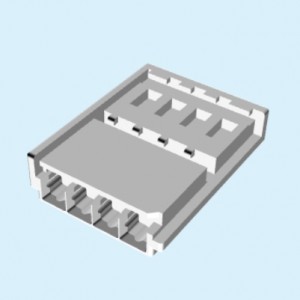

1-1534150-1：MQS CONNECTOR HOUSING TE Connectivity AMP
TE Internal: 1-1534150-1
TE Internal Description: 4POS MQS REC COD A
All MQS, CONNECTOR HOUSING (338)
Number of Positions : 4
Connector & Housing Type : Housing for Female Terminals
Mating Tab Width : .63 mm [ .025 in ]
Connector System : Wire-to-Wire
Centerline (Pitch) : 2.54 mm [ .1 in ] -

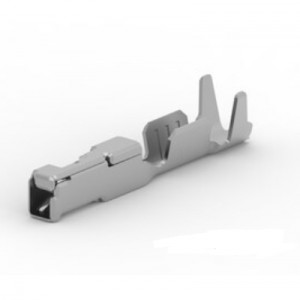

2035170-1 Generation Y Connector System
TE Internal : 2035170-1
TE Internal Description: CONTACT,FEMALE, 0.64, 20-22, C
Terminal Type : Receptacle
Wire Size (AWG): 22 – 20
Wire Size (mm²): .35 – .5
Mating Tab Width : .64 mm [ .025 in ]
Interface Plating : Tin (Sn)
