TE 3-2385466-1 Hybrid Receptacle Housing | 22-Pos, 12V, Sealed, Coding A
- Manufacturer: TE Connectivity
- Part Number: 3-2385466-1
- Connector System: Wire-to-Wire (Sealed)
- Configuration: 22 Positions, 3 Rows (Hybrid)
- Contact Sizes: Mixed .63mm and 1.2mm Tab Widths
- Keying Code: Coding A (Black)
- Operating Voltage: 12V Architecture
- Operating Temperature: -40°C to 125°C [-40°F to 257°F]
- Material: PBT GF30 (Glass Filled)
- Safety Feature: Integrated Terminal Position Assurance (TPA)
-
TE DT06-3S-P006 DEUTSCH DT 3-Way Plug | Integrated 120 Ohm Resistor
- Manufacturer: TE Connectivity / DEUTSCH
- Part Number: DT06-3S-P006 (Alias: 6-1899776-0)
- Special Feature: Integrated 120 Ohm Terminating Resistor (J1939)
- Configuration: 3 Positions, Triangular Shape, 2 Rows
- Connector Type: Plug Housing for Female Terminals (Socket)
- Environmental Protection: IP68 & IP6K9K Waterproof Rating
- Temperature Range: -55°C to 125°C [-67°F to 257°F]
- Voltage Architecture: 12V / 24V / 48V (Max Operating 250V AC/DC)
- Current Rating: 13A Max (Size 16 Contacts)
-

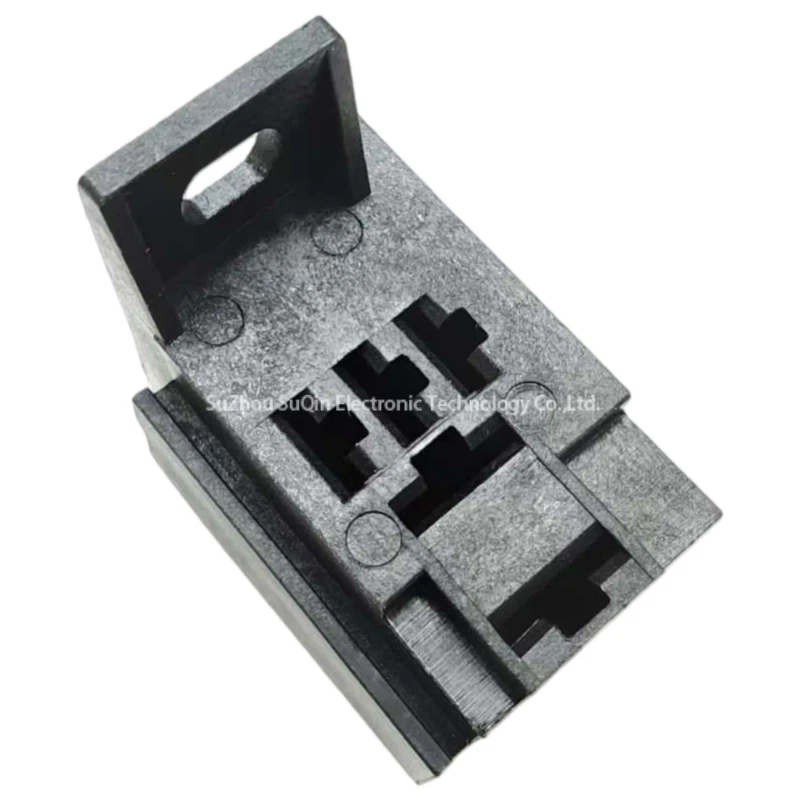

TE 1-1904045-5 Relay Socket for V23333 Series | Bracket Mount
- Manufacturer: TE Connectivity
- Part Number: 1-1904045-5
- Product Category: Relay Sockets & Hardware
- Associated Relay Series: V23333 Series
- Number of Poles: 1 Pole
- Termination Style: Quick Connect
- Mounting Style: Bracket Mount
- Unit Weight: 0.416021 oz (Approx. 11.79g)
- Packaging: Bulk
-

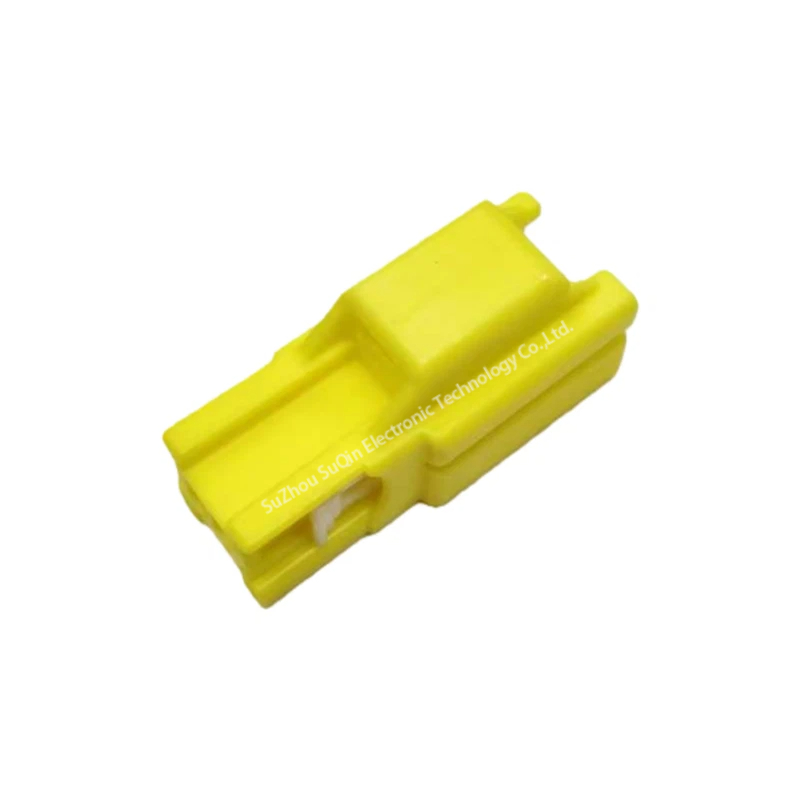

Yazaki 7282-6444-70 Male Connector | 2-Way, 1.5mm Tab, Yellow PBT
- Manufacturer: Yazaki
- Part Number: 7282-6444-70
- Connection Type: Wire Harness Connector (Unsealed)
- Number of Poles: 2-Way
- Tab Size: 1.5mm
- Gender: Male
- Color: Yellow
- Current Classification: Medium Current (15A Ref.)
- Mounting: Clip Installation Structure Supported
- Mating Part: 7283-6444-70
-

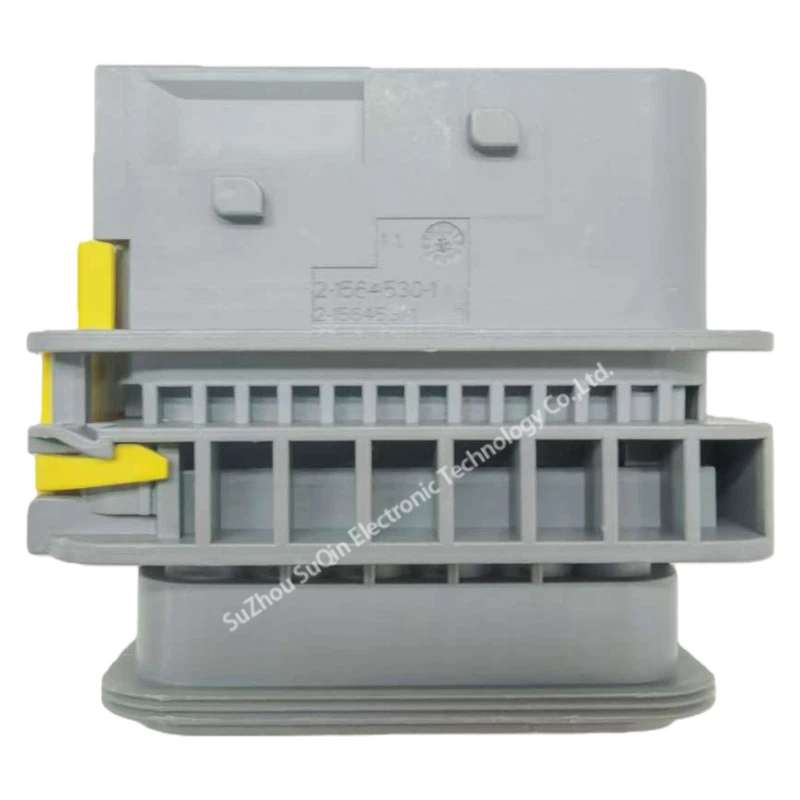

TE 2-1564530-1 HDSCS 15-Position Male Housing | Mixed Tab, Key B, Gray
- Manufacturer: TE Connectivity / AMP
- Part Number: 2-1564530-1 (HDSCS Series)
- Configuration: 15 Positions, Mixed & Hybrid (2 Rows)
- Mating Tab Sizes: 1.6mm (up to 10A) & 2.8mm (up to 30A)
- Keying Code: Key B (Gray)
- Environmental Protection: IP67 Sealed, UL 94V-0
- Voltage Architecture: 12V / 24V / 48V (Up to 60VDC)
- Temperature Range: Extreme -40°C to 140°C [-40°F to 284°F]
- Material: High-grade PBT GF30
-
TE DT04-6P-CE01 DEUTSCH DT 6-Way Receptacle | Gray Sealed Housing
- Manufacturer: TE Connectivity / DEUTSCH
- Part Number: DT04-6P-CE01
- Series: DEUTSCH DT
- Number of Positions: 6 Positions
- Connector Type: Housing for Male Terminals (Receptacle)
- Voltage Architecture: 12V, 24V, 48V
- Operating Temperature: -55°C to 125°C [-67°F to 257°F]
- Centerline (Pitch): 3.81 mm [.15 in]
- Protection: Sealable (Waterproof/Dustproof)
-
Amphenol 10142348-016LF MicroSpace™ 1.27mm Receptacle | 16-Way, Top Latch
- Manufacturer: Amphenol (MicroSpace™ Platform)
- Part Number: 10142348-016LF
- Number of Positions: 16 Ways
- Pitch: 1.27mm (0.050in) Staggered
- Design: Top Latch, Staggered Configuration
- Current Rating: 4A per contact
- Temperature Range: -40°C to +130°C
- Material: High Temperature Thermoplastic (UL 94 V-0)
- Mating Type: Wire-to-Board Receptacle
-
Molex 5055650801 Micro-Lock PLUS Receptacle | 8-Pin, 1.25mm Pitch, Black
- Manufacturer: Molex
- Part Number: 5055650801
- Series: Micro-Lock PLUS 505565
- Number of Positions: 8 Positions, Single Row
- Pitch: 1.25mm (0.049″)
- Connector Type: Receptacle Housing (Female Socket)
- Mounting Type: Free Hanging (In-Line)
- Material: Black Polybutylene Terephthalate (PBT)
- Operating Temp: -40°C to 105°C
- Note: Contacts are not included and must be purchased separately.
-
Amphenol 20204075B BMS Sealed Connector | 14-Pin Female Receptacle for EV Battery
- Manufacturer: Amphenol
- Part Number: 20204075B
- Application: BMS (Battery Management System) / VCU / Signal Control
- Circuits: 14 Positions (Dual Row 7+7)
- Gender: Receptacle (Female Housing)
- Sealing: Multi-Lip Silicone Seal (Waterproof/Dustproof)
- Housing Material: PBT-GF (Glass Fiber Reinforced)
- Temperature Range: -40C to +125C
- Color: Black with Orange Seal
