  • Molex Mini-Fit Jr. 39-01-2145 14-Position Receptacle Housing | Suqin

    Molex Mini-Fit Jr. 39-01-2145 14-Position Receptacle Housing | Suqin

    • Manufacturer & Series: Manufactured by Molex under the Mini-Fit Jr. product family, designated with part number 39-01-2145 within the 5557 series.

    • Configuration & Layout: Features a 14-position dual-row matrix layout with a 4.2 mm (0.165 in) centerline pitch and 4.2 mm (0.165 in) row-to-row spacing.

    • Electrical Capacity: Engineered to support power and signal applications with a maximum current rating of up to 13 A per circuit.

    • Material & Flammability: Molded from natural-colored nylon material achieving an industrial UL 94V-0 flammability rating for enhanced fire retardation.

    • Mechanical Mounting & Integrity: Designed for free-hanging (cable mount) configuration utilizing crimp termination methods for secure female socket contact retention.

  • Molex MX150 477259020 12-Position Panel Mount Male Plug Housing | Suqin

    Molex MX150 477259020 12-Position Panel Mount Male Plug Housing | Suqin

    • Manufacturer & Series: Manufactured by Molex under the MX150 product family, designated with part number 477259020 (alternate factory alias 0477259020) as a male plug crimp housing.

    • Configuration & Layout: Features a 12-position dual-row (2×6 grid) straight mounting angle layout with a 3.5 mm (0.138 in) centerline circuit pitch.

    • Mechanical Mounting: Engineered specifically for panel mount applications, incorporating an integrated mounting flange with Option B keying alignment for secure wire-to-wire power systems.

    • Material & Flammability: Molded from rugged light gray nylon thermopolymer material achieving a certified UL 94 V-0 flammability safety rating.

    • Wire Capability & Thermal Range: Supports a wire gauge range from 22 AWG minimum up to 14 AWG maximum, rated for stable operation across an environmental profile of -40°C to +125°C.

  • Molex 105308-1216 Nano-Fit TPA Receptacle Housing Dual Row 16 Ckt | Suqin

    Molex 105308-1216 Nano-Fit TPA Receptacle Housing Dual Row 16 Ckt | Suqin

    • Manufacturer and Series: Molex Nano-Fit 105308 Series, Part Number 105308-1216 (Aliases: 1053081216 / 01053081216).

    • Housing Type: Dual-row crimp receptacle housing with 16 circuits (positions), designed for straight wire-to-board applications.

    • Pitch and Spacing: Features 2.5 mm pitch and 2.5 mm row spacing for high-density electronic layouts.

    • TPA Integration: Compatible with optional Nano-Fit Terminal Position Assurance (TPA) retainers to secure terminals.

    • Electrical Ratings: Maximum current rating of 6.5A per circuit, compatible with socket (female) contact crimp terminals.

    • Material and Temperature: Molded from black Nylon meeting UL 94 V-0 flammability standards; operating range from -40 to +115 degrees Celsius.

    • Sourcing Availability: Factory-direct wholesale distribution via Suzhou Suqin with standard bulk packaging for tier-1 manufacturing supply chains.

  • Molex 5016461600 16-Pin iGrid 2.00mm Dual Row Receptacle Housing | Suqin

    Molex 5016461600 16-Pin iGrid 2.00mm Dual Row Receptacle Housing | Suqin

    • Brand Manufacturer: Molex

    • MPN (Part Number): 5016461600

    • Part Number Aliases: 501646-1600

    • Product Series: iGrid 501646 Series

    • Connector Type: Rectangular Connectors / Receptacle Housing

    • Total Position Count: 16 Position

    • Pitch Size: 2.00 mm (0.079 in)

    • Row Configuration: 2 Row (2 x 8 Grid Layout)

    • Row Spacing: 2.00 mm (0.079 in)

    • Mounting Configuration: Free Hanging (In-Line)

    • Termination Method: Crimp Terminal Integration

    • Contact/Housing Gender: Receptacle (Female Socket Cavities)

    • Locking Mechanism: Positive Latch Lock System

    • Insulation Material: Polyamide (PA66), Nylon 6/6

    • Operating Temperature Range: -40°C to +105°C

    • Standard Packaging: Bulk

  • Molex 0522660411 Mizu-P25 Waterproof 4-Pin Connector Plug | Suqin

    Molex 0522660411 Mizu-P25 Waterproof 4-Pin Connector Plug | Suqin

    • Brand Manufacturer: Molex

    • MPN (Part Number): 0522660411 (Series 52266)

    • DigiKey Part Alias: 522660411-ND

    • Product Series: Mizu-P25 Waterproof, Splash Proof Mini-System

    • Connector Profile Type: Plug Housing (Male Pin Shroud)

    • Total Circuit Positions: 4 Positions

    • Centerline Pitch Spacing: 0.098″ (2.50mm)

    • Row Configuration: 1 Row (Single Row)

    • Mounting Assembly Style: Free Hanging (In-Line) / Cable Mount

  • Molex 43025-1800 Micro-Fit 3.0 Receptacle Housing 18-Pin Dual Row | Suqin

    Molex 43025-1800 Micro-Fit 3.0 Receptacle Housing 18-Pin Dual Row | Suqin

    • Brand Manufacturer: Molex

    • MPN (Part Number): 43025-1800

    • Part Number Aliases: 0430251800

    • Product Series: Micro-Fit 3.0 Series (43025)

    • Connector Configuration: Housing Shell for Female Terminals (Receptacle)

    • Total Circuit Positions: 18 Positions

    • Row Architecture: Dual Row (2 Rows Layout)

    • Pitch Spacing Matrix: 3.00mm (0.118 inch) Centerline

    • Row Spacing Matrix: 3.00mm (0.118 inch) Centerline

  • Molex 0436401200 | Micro-Fit 3.0 12-Pin Panel Mount Plug Housin

    Molex 0436401200 | Micro-Fit 3.0 12-Pin Panel Mount Plug Housin

    • Brand Manufacturer: Molex

    • MPN (Part Number): 0436401200 / 43640-1200

    • Product Connector Series: Micro-Fit 3.0 43640

    • Circuit Positions: 12 Positions / 12 Pin Configuration

    • Row Architecture: Single Row (1 Row Layout)

    • Pitch Spacing Matrix: 0.118 Inches / 3.00mm

    • Connector Configuration: Plug Housing (Accepts Male Crimp Pins)

    • Mounting Attachment Type: Panel Mount via Integrated Snap-In Wings

    • Mating Retention Style: Positive Locking Ramp Mechanism

    • Insulation Base Material: Polyamide (PA), Durable Nylon

    • Operating Thermal Range: Minus 40 Degrees Celsius to 105 Degrees Celsius

    • Mating Notice: Crimp Terminals / Contacts are Sold Separately

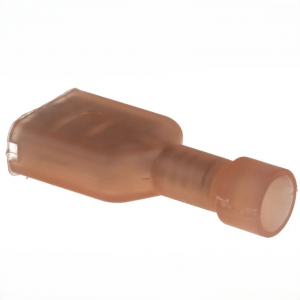

  • 0190030011 | Molex InsulKrimp 18-22 AWG Fully Insulated Female Quick Disconnect

    0190030011 | Molex InsulKrimp 18-22 AWG Fully Insulated Female Quick Disconnect

    • Manufacturer: Molex

    • Part Number: 0190030011 / 019003-0011

    • Series Name: InsulKrimp

    • Product Type: Quick Connect / Quick Disconnect Female Receptacle Terminal

    • Insulation Class: Fully Insulated Nylon Housing

    • Wire Gauge Compatibility: 18-22 AWG (American Wire Gauge)

    • Mating Tab Width: 0.187 inch (4.75 mm)

    • Mating Tab Thickness: 0.020 inch (0.51 mm)

    • Termination Method: Crimp Style

    • Contact Material Base: High-Conductivity Brass

    • Contact Surface Finish: Corrosion-Resistant Tin Plating

    • Color Identifier: Red (Industry Standard for 18-22 AWG Wire Range)

    • Mounting Type: Free Hanging / In-Line Wire Routing

    • Maximum Insulation Diameter: 0.135 inch (3.43 mm)

    • Overall Component Length: 0.780 inch (19.81 mm)

  • Molex 334721601 MX150 Sealed Female Connector | 16-Pin Dual Row Receptacle

    Molex 334721601 MX150 Sealed Female Connector | 16-Pin Dual Row Receptacle

    • Brand: Molex (MX150 Series)

    • Part Number: 334721601 (33472-1601)

    • Circuits: 16 Position (Dual Row 2×8)

    • Gender: Receptacle Housing (Female)

    • Pitch: 3.50 mm

    • Sealing Type: Mat-Sealed (Waterproof/Dustproof)

    • Keying Option: Option A (Black)

    • Housing Material: High-Performance SPS/Nylon

    • Operating Temp: -40°C to +125°C

    • Standard Compliance: Automotive Grade / RoHS
